Shop SCHNEIDER ELECTRIC

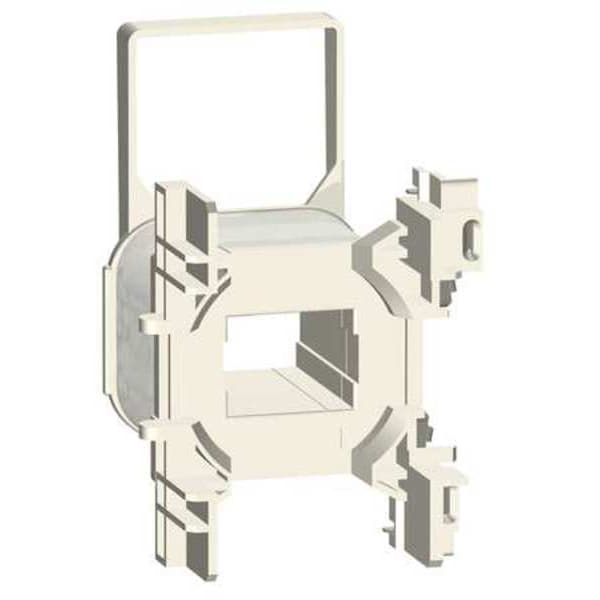

Replacement Magnetic Coil, 208VAC, 50/60Hz

  • Mfr # LXD3LE7

  • Zoro # G4081174

product price:
$
53.99
/ea

Key Features

Coil Volts
208V AC
VA Rating
160
For Use With
TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A
Hz
50/60
Contactor Type
IEC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LXD3LE7
Zoro #
G4081174
UPC #
785901677109
Country of Origin
France
Item
Replacement Coil
Coil Volts
208V AC
VA Rating
160
For Use With
TeSys D Everlink Contactors, LC1D40A - D65A, C1DT60A, LC1DT80A
Hz
50/60
Contactor Type
IEC
Maximum Operating Rate
3600 cyc/h 60 °C
Inductance Of Closed Circuit
6.22 H
Inrush Power In Va
160-160 VA 60 Hz 0.75 20 °C)
Range
TeSys
Ambient Air Temperature For Operation
-5-60 °C
Control Circuit Voltage Limits
drop-out 0.3 to 0.6 Uc 60 Hz 60 °C) || operational 0.85 to 1.1 Uc 60 Hz 60 °C)
Device Short Name
LXD3
Product Compatibility
LC1D40A to D80A || LC2D40A to D80A || LC1DT60A to DT80A
Heat Dissipation
4-5 W 60 Hz
Product Or Component Type
contactor coil
Control Circuit Type
AC 60 Hz
Mechanical Durability
6 Mcycles
Hold-In Power Consumption In Va
15-15 VA 60 Hz 0.3 20 °C)
Coil Technology
without built-in suppressor module
[Uc] Control Circuit Voltage
208 V AC 60 Hz
Average Resistance
105 Ohm 20 °C
Coil Voltage
208V AC
Coil Power
160 VA
Frequency
60 Hz
Contactor Style
IEC
Compatible with Series
LC1D40A to D80A Contactors, LC1DT60A to DT80A Contactors, LC2D40A to D80A Contactors, TeSys Deca

Description

Replacement Coil, Coil Voltage 208V AC, NEMA Size Not Applicable, Compatible with Series LC1D40A to D80A Contactors, LC1DT60A to DT80A Contactors, LC2D40A to D80A Contactors, TeSys Deca, Contactor Style IEC, Coil Power 160 VA, Frequency 60 Hz
