  13. Rlay Scket, Finger Safe/Elvator, Squre, 10A

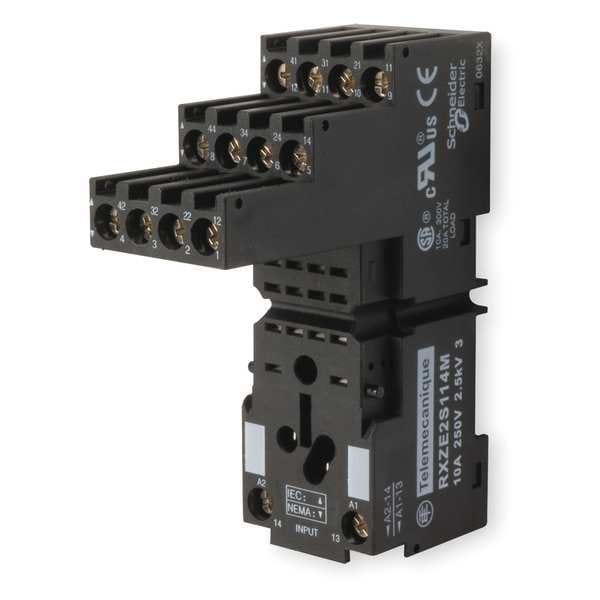

Schneider Electric Rlay Scket, Finger Safe/Elvator, Squre, 10A RXZE2S114M - main

Rlay Scket, Finger Safe/Elvator, Squre, 10A

  • Mfr # RXZE2S114M

  • Zoro # G1434501

product price: $8.59
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXZE2S114M
Zoro #
G1434501
UPC #
785901635758
Country of Origin
China

Dimensions

Width - Relay Socket
1.06 in
Width
1.06 in
Depth
3.25 in
Height - Relay Socket
2.4 in
Depth - Relay Socket
3.25 in
Length
3.25"
Flat Pin Width
0.09 in
Height
2.4 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
14
Socket Code
G
Contact Rating - Relay Socket
10A @ 250V AC
Color
Black
Socket Style
Square
Mounting
Din Rail
Voltage
250VAC
Standards
CE Certified, CSA Certified, IEC 61984, Lloyd's, UL Listed
Contact Rating
10A @ 250VAC
Status Indicator
None
Socket Type
Elevator, Finger Safe
Item
Relay Socket
Number of Pins
14
Terminals
Box Lug Separate
Mounting Style
DIN Rail & Surface
Number of Terminals
14
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
10 A @ 250V
Contact Terminal Arrangement
Separate
Electrical Connection
Screw
IP Rating
IP20
Maximum Operating Temperature
131 Degrees F
Base Style
Square
Current Rating
10 A
Weight
2.4 oz
Pin Shape
Flat
Contact Form
4PDT
Compatible Relays
Harmony(TM) RXM Series
[Ue] Rated Operational Voltage
< 250 V
Marking
CE
Ambient Air Temperature For Storage
-40-85°C
Dielectric Strength
2500 V
Pollution Degree
3
Tightening Torque
< 1 N.m M3
[Ith] Conventional Free Air Thermal Current
10A
Device Short Name
RXZ
[Uimp] Rated Impulse Withstand Voltage
4 kV
Shape Of Pin
flat
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Product Compatibility
plug-in relay RXM 4 C/O || plug-in relay REXL 4 C/O
Product Certifications
CSA || Lloyd's || UL
Product Or Component Type
socket
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Ambient Air Temperature For Operation
-40-55°C
Overvoltage Category
III
Rated Operational Voltage
Less than 250 V
Conventional Free Air Thermal Current
10 A

Description

Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail & Surface, Color Black, Compatible Relays Harmony(TM) RXM Series, Contact Rating (AC) 10 A @ 250V, Depth 3.25 in, Height 2.4 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
