  13. Rlay Scket, Fingr Safe/Elevtr, Octl, 11 Pin

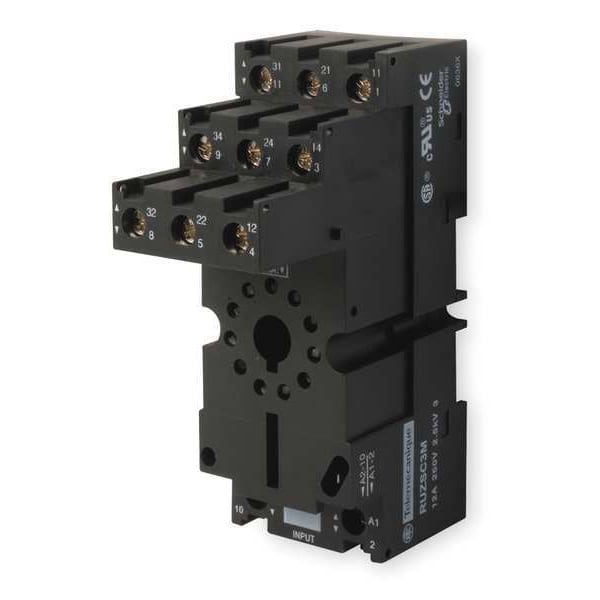

Schneider Electric Rlay Scket, Fingr Safe/Elevtr, Octl, 11 Pin RUZSC3M - main

Rlay Scket, Fingr Safe/Elevtr, Octl, 11 Pin

  • Mfr # RUZSC3M

  • Zoro # G1284561

product price: $8.59
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RUZSC3M
Zoro #
G1284561
UPC #
785901924050
Country of Origin
China

Dimensions

Depth
4.13 in
Height - Relay Socket
2.48 in
Depth - Relay Socket
3.78 in
Length
3.78"
Width
1.42 in
Width - Relay Socket
1.42 in
Height
3.62 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Octal
Contact Form - Relay Socket
3PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
11
Socket Code
B
Contact Rating - Relay Socket
12A @ 250V AC
Color
Black
Voltage
250VAC
Socket Style
Octal
Standards
CE Certified, CSA Certified, IEC 61984, UL Listed
Mounting
Din Rail
Item
Relay Socket
Socket Type
Elevator, Finger Safe
Contact Rating
12A @ 250VAC
Number of Pins
11
Terminals
Box Lug Separate
Status Indicator
None
Pin Shape
Round
Contact Rating (AC)
12 A @ 250V
Weight
3.52 oz
Minimum Operating Temperature
-40 Degrees F
Number of Terminals
11
Mounting Style
DIN Rail & Surface
Current Rating
12 A
Electrical Connection
Screw
Contact Form
3PDT
Base Style
Octal
IP Rating
IP20
Maximum Operating Temperature
131 Degrees F
Contact Terminal Arrangement
Separate
Compatible Relays
Harmony(TM) RUM Series
Product Certifications
CSA || UL
Device Short Name
RUZ
Pollution Degree
3
Overvoltage Category
III
Product Or Component Type
socket
Product Compatibility
plug-in relay RUM 3 C/O
[Ith] Conventional Free Air Thermal Current
12A
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Tightening Torque
< 1 N.m M3.5
Dielectric Strength
2500 V
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Ambient Air Temperature For Storage
-40-85°C
[Uimp] Rated Impulse Withstand Voltage
4 kV
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
[Ue] Rated Operational Voltage
< 250 V
Shape Of Pin
cylindrical
Ambient Air Temperature For Operation
-40-55°C
Marking
CE
Rated Operational Voltage
Less than 250 V
Conventional Free Air Thermal Current
12 A

Description

Relay Socket, Base Style Octal, Contact Form 3PDT, Current Rating 12 A, Electrical Connection Screw, Flat Pin Width Not Applicable, Number of Pins 11, Number of Terminals 11, Pin Shape Round, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Separate, Mounting Style DIN Rail & Surface, Color Black, Compatible Relays Harmony(TM) RUM Series, Contact Rating (AC) 12 A @ 250V, Depth 4.13 in, Height 3.62 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
