  13. Rlay Scket, Fingr Safe/Elvator, Square, 10A

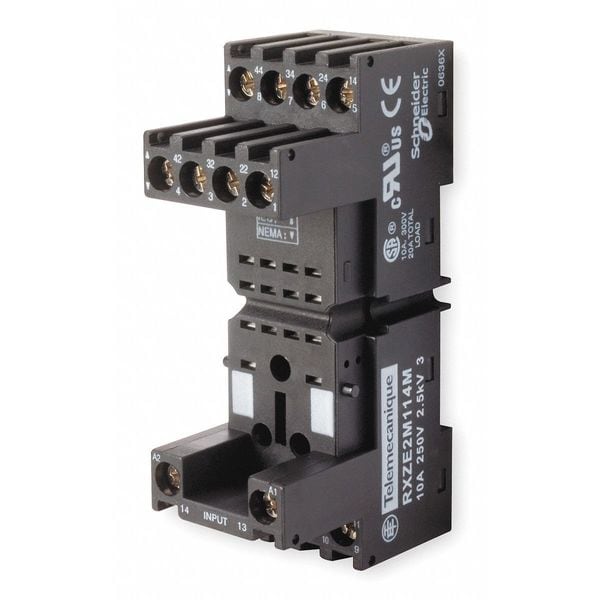

Schneider Electric Rlay Scket, Fingr Safe/Elvator, Square, 10A RXZE2M114M - main

Rlay Scket, Fingr Safe/Elvator, Square, 10A

  • Mfr # RXZE2M114M

  • Zoro # G2777101

product price: $8.75
/ea

Key Features

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RXZE2M114M
Zoro #
G2777101
UPC #
785901758051
Country of Origin
China

Dimensions

Width
1.06 in
Length
3.15"
Height - Relay Socket
1.69 in
Width - Relay Socket
1.06 in
Depth - Relay Socket
3.15 in
Depth
3.15 in
Flat Pin Width
0.09 in
Height
1.69 in

Details

Item - Relay
Relay Socket
Socket Type - Relay
Elevator, Finger Safe
Base Style - Relay Socket
Square
Contact Form - Relay Socket
4PDT
Mounting - Relay
DIN Rail
Electrical Connection - Relay Socket
Box Lug
Number of Pins - Relay
14
Socket Code
G
Contact Rating - Relay Socket
10A @ 250V AC
Color
Black
Contact Rating
10A @ 250VAC
Number of Pins
14
Socket Style
Square
Socket Type
Elevator, Finger Safe
Mounting
Din Rail
Item
Relay Socket
Voltage
250VAC
Status Indicator
None
Standards
CE Certified, CSA Certified, IEC 61984, Lloyd's, UL Listed
Terminals
Box Lug Mixed
Number of Terminals
14
Current Rating
10 A
Maximum Operating Temperature
131 Degrees F
Pin Shape
Flat
Electrical Connection
Screw
Contact Form
4PDT, DPDT
Base Style
Square
Minimum Operating Temperature
-40 Degrees F
Contact Terminal Arrangement
Mixed
Mounting Style
DIN Rail & Surface
IP Rating
IP20
Contact Rating (AC)
10 A @ 250V
Weight
1.92 oz
Compatible Relays
Harmony(TM) REXL Series, Harmony(TM) RXM Series
Connections - Terminals
connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Fixing Mode
by screw panel) || clip-on 35 mm symmetrical DIN rail)
Ambient Air Temperature For Storage
-40-85°C
Device Short Name
RXZ
Ambient Air Temperature For Operation
-40-55°C
Tightening Torque
< 1 N.m M3
Marking
CE
[Ith] Conventional Free Air Thermal Current
10A
Overvoltage Category
III
Pollution Degree
3
[Uimp] Rated Impulse Withstand Voltage
4 kV
Dielectric Strength
3000 V
Product Compatibility
plug-in relay RXM 2 C/O || plug-in relay RXM 4 C/O
Shape Of Pin
flat
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Product Or Component Type
socket
Product Certifications
UL || CSA || Lloyd's
[Ue] Rated Operational Voltage
< 250 V
Rated Operational Voltage
Less than 250 V
Conventional Free Air Thermal Current
10 A

Description

Relay Socket, Base Style Square, Contact Form 4PDT, DPDT, Current Rating 10 A, Electrical Connection Screw, Flat Pin Width 0.09 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Elevator, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail & Surface, Color Black, Compatible Relays Harmony(TM) REXL Series, Harmony(TM) RXM Series, Contact Rating (AC) 10 A @ 250V, Depth 3.15 in, Height 1.69 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F
