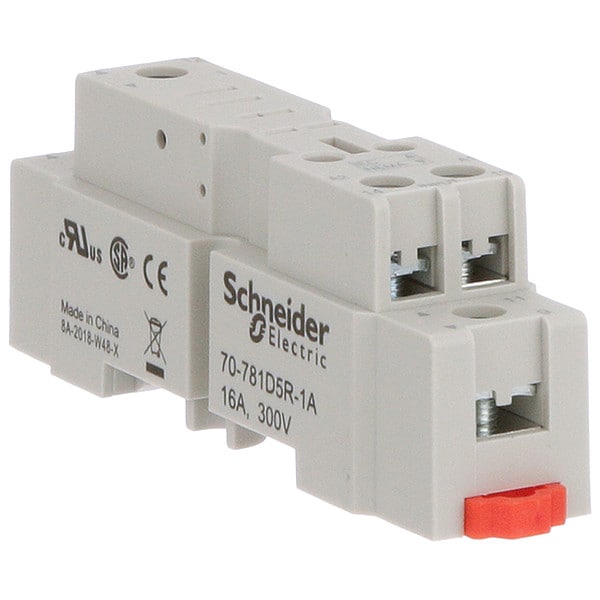

Rly Sckt, Fingr Saf, Squae, 5 Pin, Scrw Clmp

product price: $7.09
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Socket Type - Relay Elevator, Finger Safe
  • Base Style - Relay Socket Square
  • Contact Form - Relay Socket SPDT
  • Mounting - Relay DIN Rail
  • Electrical Connection - Relay Socket Screw Clamp
See all product information

Product Information

Dimensions

Depth 2.24 in
Width - Relay Socket 0.82 in
Height - Relay Socket 1.18 in
Length 3.33"
Width 0.83 in
Depth - Relay Socket 3.33 in
Flat Pin Width 0.185 in
Height 1.18 in

Details

Item - Relay Relay Socket
Socket Type - Relay Elevator, Finger Safe
Base Style - Relay Socket Square
Contact Form - Relay Socket SPDT
Mounting - Relay DIN Rail
Electrical Connection - Relay Socket Screw Clamp
Number of Pins - Relay 5
Socket Code L
Contact Rating - Relay Socket 16A @ 300V AC
Color White
Standards CE Certified, CSA Certified, UL Listed
Number of Pins 5
Contact Rating 16A @ 300VAC
Socket Type Standard, Finger Safe
Item Relay Socket
Socket Style Square
Terminals Screw Clamp
Voltage 300VAC
Mounting Din Rail
Status Indicator None
Socket Design Standard
Socket Mounting Style DIN-Rail
Mounting Style DIN Rail
Finger Safe Yes
Weight 1.09 oz
Socket Code Configurator Square / 5 / 0.185 in
Number of Terminals 5
Pin Shape Flat
Maximum Operating Temperature 131 Degrees F
Electrical Connection Screw Clamp
Electrical Connection Type Screw
Base Style Square
Contact Form SPDT
Minimum Operating Temperature -40 Degrees F
Compatible Relays 781R Series
Current Rating 16 A
Contact Terminal Arrangement Mixed
IP Rating IP20
Contact Rating (AC) 16 A @ 300V
Product Type Socket
Ambient Air Temperature for Operation -40 to 131°F (-40 to 55°C)
Connections Terminals screw clamp terminals flexible; screw clamp terminals solid
Product Certifications UL; CSA; CE
Product Range Legacy
Contact Composition 1 NC + 1 NO
Product Compatibility relay 781XAXR; diode 70-BSMD; signalling device 70-BSMLG; suppressor module 70-BSMM
Fixing Mode By screw M3.5, M3.5 panel; Clip-on 35 mm DIN rail
Ambient Air Temperature for Storage -40 to 185°F (-40 to 85°C)
[Ue] rated operational voltage 300 V
Tightening Torque Screw < 1 N.m; Screw < 0.8 N.m
Flame Retardance UL94-V0

Description

Relay Socket, Base Style Square, Contact Form SPDT, Current Rating 16 A, Electrical Connection Screw Clamp, Flat Pin Width 0.185 in, Number of Pins 5, Number of Terminals 5, Pin Shape Flat, Socket Type Standard, Finger Safe, Contact Terminal Arrangement Mixed, Mounting Style DIN Rail, Color White, Compatible Relays 781R Series, Contact Rating (AC) 16 A @ 300V, Depth 2.24 in, Height 1.18 in, IP Rating IP20, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature -40 Degrees F
