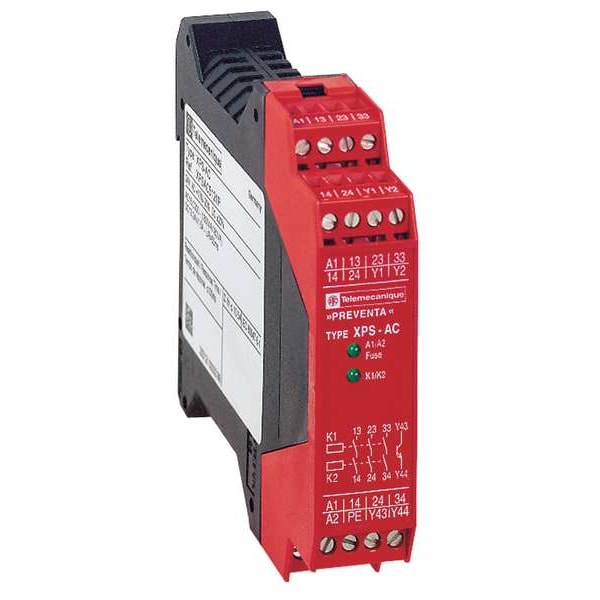

Schneider Electric Safety Monitoring Relay, 120VAC, 7.0VA XPSAC3421P

Safety Monitoring Relay, 120VAC, 7.0VA (Discontinued)

  • Mfr # XPSAC3421P
  • Zoro # G1728081
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XPSAC3421P
Zoro #
G1728081
UPC #
785901297536
Country of Origin
Indonesia

Dimensions

Overall Height - Relay
3.9 in
Width
0.89"
Body Depth - Relay
4.49 in
Body Width - Relay
0.89 in
Height
3.90"
Body Height - Relay
3.9 in
Depth
4.49"
Body Depth
4.49 in
Overall Depth
3.9 in
Body Width
0.89 in
Body Height
3.9 in

Details

Item - Relay
Safety Monitoring Relay
Input or Control Voltage
120 V AC
AC Contact Rating - Relay
2.50A @ 300 V
DC Contact Rating - Relay
2.00A @ 24 V
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(1) Solid State, (3) SPST-NO Instantaneous
Input Power Consumption (Burden)
7 VA
Number of Inputs - Relay
1
Use With - Relay
E Stop, Limit Switch
Delay Time - Relay
No Delay
Response Time - Safety Monitoring Relay
Less Than 100 msec
Output Switch Configuration - Safety Monitoring Relay
(3) SPST-NO Instantaneous, (1) Solid State
Power Consumption
7 VA
Response Time
100 msec
Contact Configuration
3NO/1NC Aux.
Number of Inputs - Safety Monitoring Relay
1
Delay Time - Safety Monitoring Relay
No Delay
Input or Control Voltage Range
120VAC
Contact Load Rating
2.5A
Standards
BG, CSA, UL
Electrical Connection - Safety Monitoring Relay
Captive Screw, Terminal Block Removable
Mounting
DIN Rail
Coil Volts
115VAC
Number of Pins - Relay
16
Input Current
50mA
Use With - Safety Monitoring Relay
E Stop, Limit Switch
Input Voltage
120V AC
Item
Safety Monitoring Relay
Environmental Protection
IP40
For Use With
E Stop, Limit Switch
Response Time - Relay
Less Than 100 msec
Electrical Connection - Relay
Captive Screw, Terminal Block Removable
Input Power
115VAC
IP Rating
IP40
Contact Rating (DC)
2.00A @ 24V
Contact Rating (AC)
2.50A @ 300V
Number of Pins
16
Mounting Style
DIN Rail
Delay Time
No Delay
Output Switch Configuration
(1) Solid State, (3) SPST-NO Instantaneous
Electrical Connection
Captive Screw
Number of Inputs
1

Description

Safety Monitoring Relay, Delay Time No Delay, Electrical Connection Captive Screw, IP Rating IP40, Input Voltage 120V AC, Mounting Style DIN Rail, Number of Inputs 1, Number of Pins 16, Output Switch Configuration (1) Solid State, (3) SPST-NO Instantaneous, Response Time 100 msec, Standards BG, CSA, UL, Contact Rating (AC) 2.50A @ 300V, Contact Rating (DC) 2.00A @ 24V, For Use With E Stop, Limit Switch, Body Depth 4.49 in, Body Height 3.9 in, Body Width 0.89 in, Overall Depth 3.9 in
