  11. Safety Monitoring Relay, 4NO/2NC

This item is Discontinued.

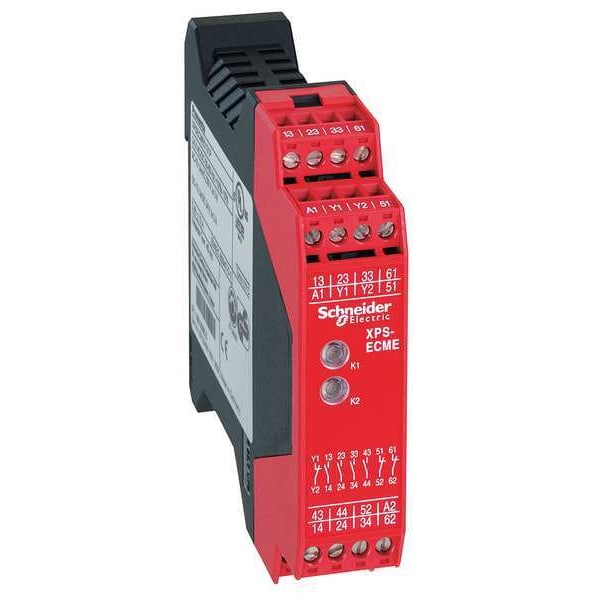

Schneider Electric Safety Monitoring Relay, 4NO/2NC XPSECME5131P

Safety Monitoring Relay, 4NO/2NC (Discontinued)

  • Mfr # XPSECME5131P
  • Zoro # G8279792
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XPSECME5131P
Zoro #
G8279792
UPC #
785901524328
Country of Origin
Germany

Dimensions

Width
0.89"
Depth
4.49"
Body Depth - Relay
4.49 in
Overall Height - Relay
3.9 in
Body Height - Relay
3.9 in
Body Width - Relay
0.89 in
Height
3.90"
Body Height
3.9 in
Body Width
0.89 in
Overall Depth
3.9 in
Body Depth
4.49 in

Details

Item - Relay
Safety Relay Extension Module
Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
5A @ 300 V
DC Contact Rating - Relay
1.50A @ 24 V
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(2) SPST-NC Aux. Relay, (4) SPST-NO Instantaneous
Input Power Consumption (Burden)
5 VA
Number of Inputs - Relay
2
Use With - Relay
All XPS Series Relays
Delay Time - Relay
No Delay
Power Consumption
5 VA
Input or Control Voltage Range
24VAC/DC
Number of Pins - Relay
16
Standards
CE, CSA, UL
Electrical Connection - Safety Monitoring Relay
Captive Screw, Terminal Block Removable
Item
Safety Relay Extension Module
Number of Inputs - Safety Monitoring Relay
2
Response Time
20 msec
Mounting
DIN Rail
Output Switch Configuration - Safety Monitoring Relay
(4) SPST-NO Instantaneous, (2) SPST-NC Aux. Relay
Delay Time - Safety Monitoring Relay
No Delay
Contact Configuration
4NO/2NC
Contact Load Rating
1.5A
Use With - Safety Monitoring Relay
All XPS Series Relays
Environmental Protection
IP20
Coil Volts
24VAC/DC
Response Time - Safety Monitoring Relay
20 msec
Input Voltage
24V AC/DC
For Use With
All XPS Series Relays
Electrical Connection - Relay
Captive Screw, Terminal Block Removable
Response Time - Relay
20 msec
Input Power
24VAC/DC
IP Rating
IP20
Contact Rating (AC)
5A @ 300V
Electrical Connection
Captive Screw
Number of Inputs
2
Number of Pins
16
Output Switch Configuration
(2) SPST-NC Aux. Relay, (4) SPST-NO Instantaneous
Delay Time
No Delay
Mounting Style
DIN Rail
Contact Rating (DC)
1.50A @ 24V

Description

Safety Relay Extension Module, Delay Time No Delay, Electrical Connection Captive Screw, IP Rating IP20, Input Voltage 24V AC/DC, Mounting Style DIN Rail, Number of Inputs 2, Number of Pins 16, Output Switch Configuration (2) SPST-NC Aux. Relay, (4) SPST-NO Instantaneous, Response Time 20 msec, Standards CE, CSA, UL, Contact Rating (AC) 5A @ 300V, Contact Rating (DC) 1.50A @ 24V, For Use With All XPS Series Relays, Body Depth 4.49 in, Body Height 3.9 in, Body Width 0.89 in, Overall Depth 3.9 in
