This item is Discontinued.

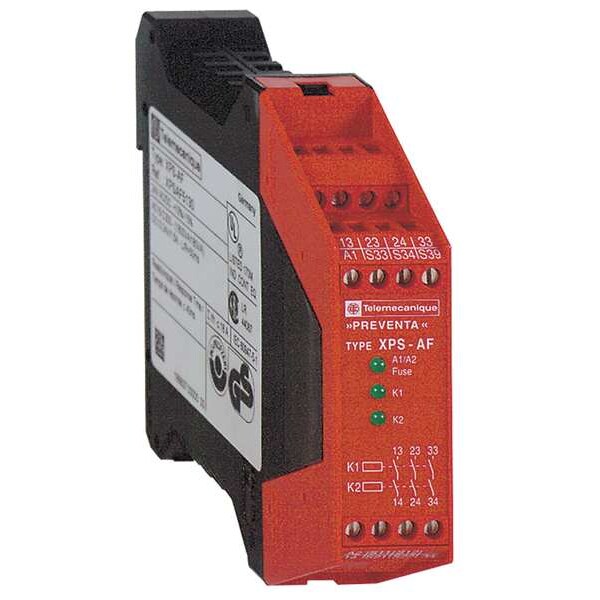

Schneider Electric Safety Monitoring Relay, DIN Rail, 5.0VA XPSAF5130P

Safety Monitoring Relay, DIN Rail, 5.0VA (Discontinued)

  • Mfr # XPSAF5130P
  • Zoro # G1459306
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XPSAF5130P
Zoro #
G1459306
UPC #
785901294702
Country of Origin
Indonesia

Dimensions

Body Height - Relay
3.9 in
Width
0.89"
Overall Height - Relay
3.9 in
Body Width - Relay
0.89 in
Depth
4.49"
Height
3.90"
Body Depth - Relay
4.49 in
Body Height
3.9 in
Overall Depth
3.9 in
Body Width
0.89 in
Body Depth
4.49 in

Details

Item - Relay
Safety Monitoring Relay
Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
2.50A @ 300 V
DC Contact Rating - Relay
1.50A @ 24 V
Mounting - Relay
DIN Rail
Output Switch Configuration - Relay
(3) SPST-NO Instantaneous
Input Power Consumption (Burden)
5 VA
Number of Inputs - Relay
3
Use With - Relay
E Stop, Limit Switch
Delay Time - Relay
No Delay
Item
Safety Monitoring Relay
Environmental Protection
IP40
Number of Inputs - Safety Monitoring Relay
3
Input Current
Less Than200mA
Coil Volts
24VAC/DC
Input Voltage
24V AC/DC
Use With - Safety Monitoring Relay
E Stop, Limit Switch
Delay Time - Safety Monitoring Relay
No Delay
Number of Pins - Relay
16
Response Time - Safety Monitoring Relay
Less Than 40 msec
Response Time
40 msec
Input or Control Voltage Range
24VAC/DC
Standards
BG, CSA, UL
Output Switch Configuration - Safety Monitoring Relay
(3) SPST-NO Instantaneous
Power Consumption
5 VA
Mounting
DIN Rail
Contact Load Rating
2.5A
Contact Configuration
3NO
Electrical Connection - Safety Monitoring Relay
Captive Screw, Terminal Block Removable
For Use With
E Stop, Limit Switch
Response Time - Relay
Less Than 40 msec
Electrical Connection - Relay
Captive Screw, Terminal Block Removable
Input Power
24VAC/DC
IP Rating
IP40
Mounting Style
DIN Rail
Number of Pins
16
Output Switch Configuration
(3) SPST-NO Instantaneous
Contact Rating (DC)
1.50A @ 24V
Number of Inputs
3
Delay Time
No Delay
Electrical Connection
Captive Screw
Contact Rating (AC)
2.50A @ 300V

Description

Safety Monitoring Relay, Delay Time No Delay, Electrical Connection Captive Screw, IP Rating IP40, Input Voltage 24V AC/DC, Mounting Style DIN Rail, Number of Inputs 3, Number of Pins 16, Output Switch Configuration (3) SPST-NO Instantaneous, Response Time 40 msec, Standards BG, CSA, UL, Contact Rating (AC) 2.50A @ 300V, Contact Rating (DC) 1.50A @ 24V, For Use With E Stop, Limit Switch, Body Depth 4.49 in, Body Height 3.9 in, Body Width 0.89 in, Overall Depth 3.9 in
