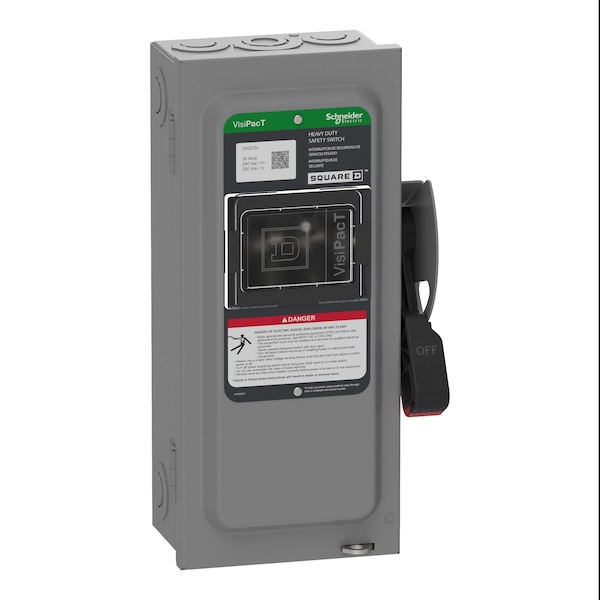

Schneider Electric Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel VH321N - main

Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

  • Mfr # VH321N

  • Zoro # G409691301

CAD Available
product price:  $225.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VH321N
Zoro #
G409691301
UPC #
3606485893365
Country of Origin
United States

Dimensions

Height
14 5/8 in
Width
6 3/8 in
Depth
5 1/8 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor
Enclosure Type
NEMA 1
HP
Not Rated
Voltage
240 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Includes
Dual Cover Interlock
IP Rating
IP20
Amps
30 A
Number of Wires
4
Number of Poles
3
Duty
Heavy Duty
Neutral Assembly Included
Yes
Series
F
Number of Mounting Holes
5
Number of Locks
2
Horsepower @ 240V AC
3 hp
NEMA Enclosure Rating
1
Mounting Style
Surface Mount
Features
Quick Make/Break Operating Mechanism, Viewing Window
Includes Interlocked Receptacle
Yes
Fuse Kit (Class R)
Mfr. No. RFK03L
Horsepower @ 480V AC
Not Rated
Compatible with Manufacturer Model Number
RFK03L
Horsepower @ 600V AC
Not Rated
Compatible Manufacturer Part Number
RFK03L
Compatible Manufacturer Model Number
RFK03L
For Use With Mfr. Model Number
RFK03L
Device Composition
neutral (factory installed)
Electrical Connection
lugs
Product Certifications
UL listed file E2875
Device Mounting
surface
Disconnector Device Type
fusible disconnect
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Device Application
heavy application
Tightening Torque
45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Series Name
heavy duty
Wiring Configuration
4-wire (3PH + N)
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Product Or Component Type
Single Throw Safety Switch
Compatible with Manufacturer Model No.
RFK03L
Compatible with Mfr. Model No.
RFK03L
For Use with Mfr Model Number
RFK03L
Compatible Pump Manufacturer Part Number
RFK03L
Compatible Mfr. Model Number
RFK03L
CAD Available
Yes

Description

The SCHNEIDER ELECTRIC - VH321N is a Safety Disconnect Switch, an essential industrial electrical device designed to interrupt the flow of electricity for safe equipment maintenance and emergency situations. This product falls under the category of Electrical Supplies and is used by industry professionals to ensure power systems can be quickly and safely disconnected, reducing the risk of electrical accidents during routine operations or unexpected events.

  • Amps: With a current rating of 30 A, this switch is rated for a maximum current of 30 A.
  • Compatible Manufacturer Model Number: The model number RFK03L indicates which models of safety disconnect switches this particular product is designed to work with or replace.
  • Condition Of Use: Intended for use as a service entrance in the USA and Mexico. Compliance with local electrical codes and standards is dependent on proper installation and usage.
  • Contact Form: The 3PST contact form determines how many circuits can be controlled by this safety disconnect switch.
  • Device Mounting: Intended for surface mounting on flat areas.
  • Duty: Categorized as 'Heavy Duty', which may be suitable for certain high-demand applications depending on specific requirements
  • Enclosure Type: Comes with NEMA 1 rated enclosure capable of withstanding environmental conditions such as dust, water, corrosion and external ice formation
  • Housing Material: Made from steel, which can potentially enhance durability under certain environmental conditions
