Shop SCHNEIDER ELECTRIC

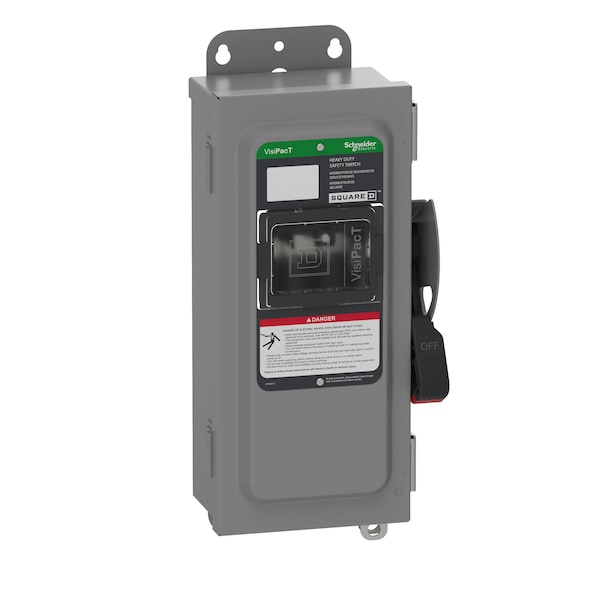

Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 12, Indoor, Steel

  • Mfr # VHU361NAWKGL

  • Zoro # G709691377

product price:
$
788.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
VHU361NAWKGL
Zoro #
G709691377
UPC #
3606485894430
Country of Origin
Korea, Republic of
Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor
Enclosure Type
NEMA 12
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Amps
30 A
Number of Wires
4
Number of Poles
3
Includes
Dual Cover Interlock
Neutral Assembly Included
Yes
IP Rating
IP52
Duty
Heavy Duty
Mounting Style
Surface Mount
Series
F
Number of Mounting Holes
4
Horsepower @ 480V AC
20 hp
Fuse Kit (Class R)
Mfr. No. RFK03H, Mfr. No. RFK06
NEMA Enclosure Rating
12
Horsepower @ 600V AC
30 hp
Features
Quick Make/Break Operating Mechanism, Viewing Window
Compatible with Manufacturer Model Number
RFK03H, RFK06
Number of Locks
2
Includes Interlocked Receptacle
Yes
Horsepower @ 240V AC
Not Rated
Compatible Manufacturer Part Number
RFK03H, RFK06
Compatible Manufacturer Model Number
RFK03H, RFK06
For Use With Mfr. Model Number
RFK03H, RFK06
Electrical Connection
lugs
Product Or Component Type
Single Throw Safety Switch
Series Name
heavy duty
Device Mounting
surface
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Disconnector Device Type
non-fusible disconnect
Wiring Configuration
4-wire (3PH + N)
Device Application
heavy application
Product Certifications
UL listed file E2875
Device Composition
neutral (factory installed)
Tightening Torque
45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Compatible with Manufacturer Model No.
RFK03H, RFK06
Compatible with Mfr. Model No.
RFK03H, RFK06
For Use with Mfr Model Number
RFK03H, RFK06
Compatible Pump Manufacturer Part Number
RFK03H, RFK06
Compatible Mfr. Model Number
RFK03H, RFK06
For Manufacturer Part Number
RFK03H, RFK06
Compatible with Mfr. Model Number
RFK03H, RFK06

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03H, RFK06, Contact Form 3PST, Current Rating 30 A, Depth 5 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK03H, Mfr. No. RFK06, Handle Color Black/Red, Height 14 5/8 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 20 hp, Horsepower @ 600V AC 30 hp
