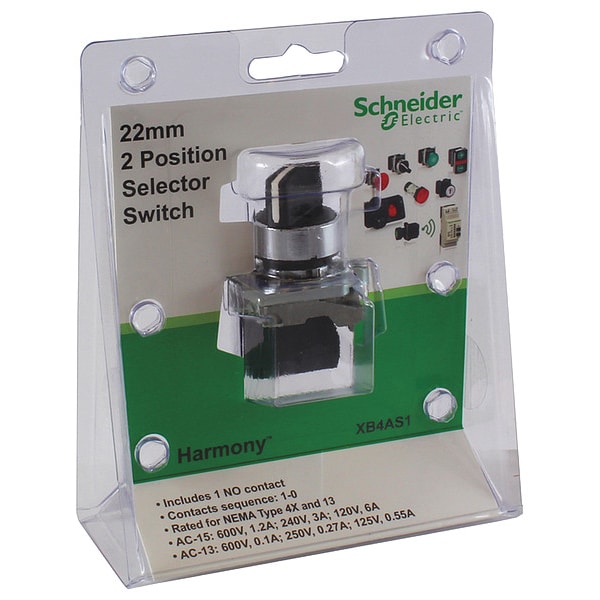

Selector Switch, 2 Pos, 22 mm, Black

Selector Switch, 2 Pos, 22 mm, Black

Mfr # XB4AS1
Zoro # G3614923

$52.25

Key Features

Size

22 mm

Basic Material

Metal

Type of Operator

Selector Switch

Action

Maintained/Maintained

Contact Form

1NO

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

XB4AS1

Zoro #

G3614923

UPC #

785901553908

Country of Origin

Mexico

Dimensions

Size

22 mm

Depth

68 mm

Height

47 mm

Width

30 mm

Mounting Diameter

22 mm

Overall Depth

2.68 in

Overall Height

1.85 in

Overall Width

1.18 in

Panel Cutout Diameter

22 mm

Details

Item

Selector Switch

Basic Material

Metal

Type of Operator

Selector Switch

Action

Maintained/Maintained

Contact Form

1NO

Cam

No Cam Included

Operator Head Material

Plastic

Color

Black

NEMA Rating

13, 4x

Position

Bezel Material

Chrome Plated Metal

Bezel Color

Chrome

Includes

XB4BD21

IP Rating

IP69K

Series

XB4

Standards

BV, CSA, DNV, GL, LROS, UL Listed

Contact Rating

0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC

NEMA Contact Rating Designation

A600/Q600

AC Contact Rating

1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Switch Operation @ Position C

No Third Position

Switch Operation @ Position D

No Fourth Position

Tightening Torque

0.8-1.2 N.m EN 60947-1

Operator Position Information

2 positions 90Â°

Ambient Air Temperature For Operation

-25-70Â°C

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Shape Of Screw Head

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Device Short Name

XB4

Ambient Air Temperature For Storage

-40-70Â°C

Mechanical Durability

1000000 cycles

Contact Operation

slow-break

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1

Device Presentation

complete product

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

Product Certifications

BV || UL || CSA || DNV || LROS (Lloyds register of shipping) || GL

Product Or Component Type

selector switch

Operator Profile

black standard handle

Fixing Collar Material

zamak

Shape Of Signaling Unit Head

round

Electrical Durability

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C

Electrical Reliability

Î» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Î» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Protective Treatment

Ip Degree Of Protection

IP69K IEC 60529

Resistance To High Pressure Washer

7000000 Pa 55Â°C 0.1 m

Contacts Type And Composition

1 NO

Terminals Description Iso N°1

(3-4)NO

Nema Degree Of Protection

NEMA 13 || NEMA 4X

[Ui] Rated Insulation Voltage

600 V 3)EN 60947-1

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Contacts Usage

standard contacts

Positive Opening

without

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage

6 kV EN 60947-1

Torque Value

0.14 N.m NO changing electrical state

Overvoltage Category

class I IEC 60536

Contacts Material

silver alloy (Ag/Ni)

Terminals Description Iso NÂ°1

(3-4)NO

Switch Function @ 2nd Position

Switch Function @ 1st Position

Off

Operator Illumination

Non-Illuminated

Contact Block Material

Metal

Operator Head Color

Black

Switch Function @ 3rd Position

No Third Position

Number of Positions

Switch Function @ 4th Position

No Fourth Position

Hazardous Location Specification

Not Rated

Operator Head Type

Short-Handled Knob

NEMA Enclosure Rating

1, 12, 13, 2, 3, 4, 4X

Description

Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, 1NO Contact Form, Type of Operator Selector Switch, Color Black, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 13, 4x, IP Rating IP69K, Cam No Cam Included, Switch Operation @ Position C No Third Position
