  13. Selector switch, Harmony XAC, plastic, black handle, 2 positions, unmarked

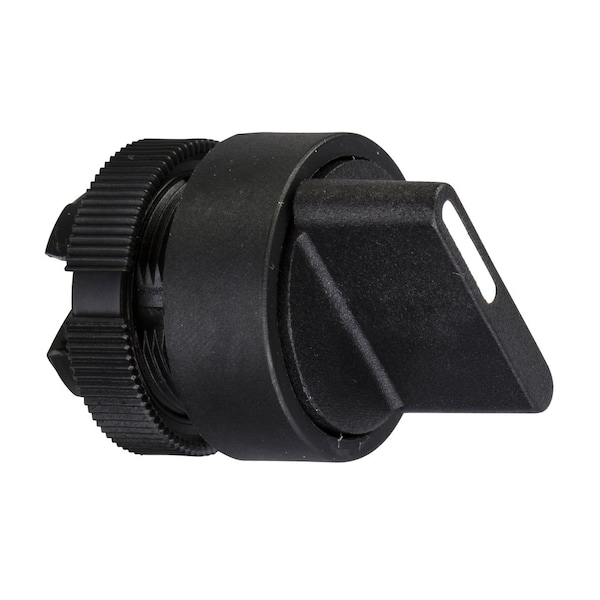

Schneider Electric Selector switch, Harmony XAC, plastic, black handle, 2 positions, unmarked ZA2BD2 - main

Selector switch, Harmony XAC, plastic, black handle, 2 positions, unmarked

  • Mfr # ZA2BD2

  • Zoro # G010839598

product price: $24.49
/ea
Sold in multiples of 30 for $734.70

Key Features

Action
Maintained/Maintained
Operator Head Material
Plastic
IP Rating
IP65
Series
XAC
Standards
CSA C22.2 No.14, EN/IEC 60204-32, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529EN 50102, IEC 61140, UL 508
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZA2BD2
Zoro #
G010839598
UPC #
3389110645309
Country of Origin
France

Dimensions

Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch Knob
Action
Maintained/Maintained
Operator Head Material
Plastic
IP Rating
IP65
Series
XAC
Standards
CSA C22.2 No.14, EN/IEC 60204-32, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529EN 50102, IEC 61140, UL 508
Ik Degree of Protection
IK08 conforming to EN 50102
Range of Product
Harmony XAC
Shock Resistance
100 gn IEC 60068-2-27
Product or Component Type
selector switch
Component Name
ZA2
Overvoltage Category
class II IEC 61140
Ambient Air Temperature For Operation
-25-70°C
Cap/Operator or Lens Colour
black
Mounting Location
base of enclosure, front of enclosure
Marking
unmarked
Ambient Air Temperature For Storage
-40-70°C
Product Compatibility
XACA
Vibration Resistance
15 gn 10-500 Hz)IEC 60068-2-6
Ip Degree of Protection
IP65 conforming to IEC 60529
Operator Illumination
Non-Illuminated
Includes Operator Key
No Key Included
Switch Function @ 4th Position
No Fourth Position
Number of Positions
2
Operator Head Color
Black
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
No Third Position

Description

Selector Switch Knob, Maintained/Maintained Action, Operator Head Material Plastic, IP Rating IP65, Cam Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60204-32, EN/IEC 60947-5-1, IEC 60068-2-27, IEC 60068-2-6, IEC 60529EN 50102, IEC 61140, UL 508
