  13. Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 2 positions, stay put

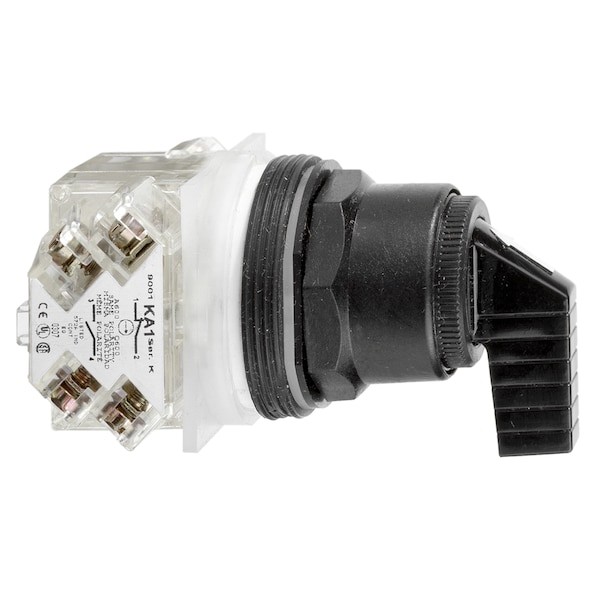

Schneider Electric Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 2 positions, stay put 9001SKS11FB - main

Selector switch head, Harmony 9001SK, plastic, long handle, black, 30mm, 2 positions, stay put

  • Mfr # 9001SKS11FB

  • Zoro # G3305273

product price: $54.75
/ea

Key Features

Bezel Material
plastic
Standards
CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1
Device Short Name
9001SK
Device Presentation
basic element
Type Of Operator
stay put
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS11FB
Zoro #
G3305273
UPC #
-
Country of Origin
Mexico

Dimensions

Mounting Diameter
30 mm

Details

Item
SELECTOR SWITCH OPERATOR 30MM SK
Bezel Material
plastic
Standards
CSA C22.2 No 14 || JIS C 4520 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1
Device Short Name
9001SK
Device Presentation
basic element
Type Of Operator
stay put
Ambient Air Temperature For Operation
-25-70°C
Electrical Shock Protection Class
class II IEC 61140
Shock Resistance
50 gn IEC 60068-2-27
Operator Position Information
2 positions
Product Certifications
NEMA || UL 508
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
without contact block
Operator Profile
black long handle
Ip Degree Of Protection
IP66 IEC 60529
Mechanical Durability
500000 cycles
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment
TC
Shape Of Signaling Unit Head
octagonal
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X || NEMA 6
Product Compatibility
9001KA2 side 1 or 2
Product Or Component Type
head for selector switch
Cam Profile
5
Cap/Operator or Lens Colour
black
Range of Product
Harmony 9001SK

Description

SELECTOR SWITCH OPERATOR 30MM SK
