  13. Selector Switch, Illum, 2 Pos, 30mm, Red

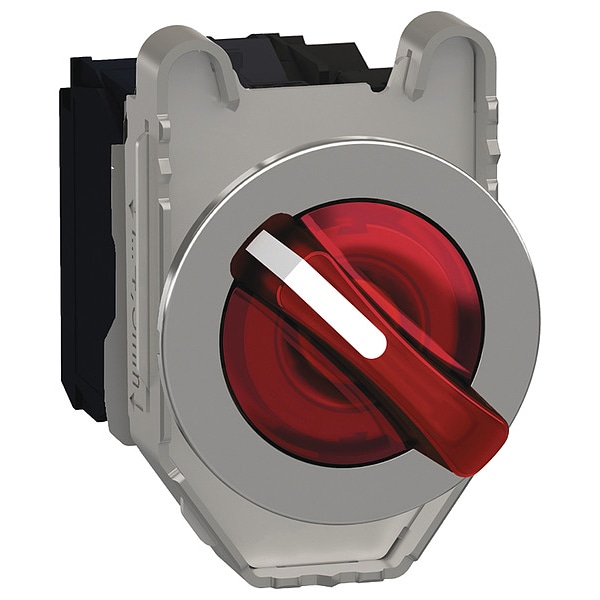

Schneider Electric Selector Switch, Illum, 2 Pos, 30mm, Red XB4FK124B5 - main

Selector Switch, Illum, 2 Pos, 30mm, Red

  • Mfr # XB4FK124B5

  • Zoro # G3549227

product price: $98.49
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FK124B5
Zoro #
G3549227
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Depth
69.5 mm
Height
53 mm
Width
36.6 mm
Overall Width
1.44 in
Panel Cutout Diameter
30 mm
Overall Depth
2.74 in
Overall Height
2.09 in
Mounting Diameter
30.5 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Contact Form
1NO/1NC
Operator Head Material
Plastic
Cam
No Cam Included
Color
Red
NEMA Rating
12, 13, 4, 4X
Position
2
Bezel Material
Chrome Plated Metal
Bezel Color
Chrome
Lamp Module Type
Full Voltage
Series
XB4
Switch Operation @ Position D
No Fourth Position
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
NEMA Contact Rating Designation
A600/Q600
Switch Operation @ Position C
No Third Position
IP Rating
IP66, IP67, IP69, IP69K
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Lamp Type
LED
Lamp Module Voltage
24V AC/DC
Standards
CCC, CSA, EAC, UL Listed
Lamp Voltage
24V AC/DC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Switch Function @ 3rd Position
No Third Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Lamp Voltage - Maximum
24 V AC/DC
Switch Function @ 1st Position
Off
Hazardous Location Specification
Not Rated
Contact Block Material
Metal
Switch Function @ 2nd Position
On
Operator Head Color
Red
Number of Positions
2
Operator Head Type
Short-Handled Knob
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Illuminated
Bulb Base
integral LED
Resistance To Fast Transients
2 kV IEC 61000-4-4
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Product Certifications
UL Listed || CSA || CCC || EAC
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Operating Torque
0.14 N.m NO changing electrical state
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operator Profile
red standard handle
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contacts Type And Composition
1 NO + 1 NC
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Device Short Name
XB4F
Operator Position Information
2 positions 90°
Electromagnetic Emission
class B IEC 55011
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Electrical Shock Protection Class
class I IEC 60536
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Material
silver alloy (Ag/Ni)
Device Presentation
complete product
Device Mounting
built-in 30.75 mm +/- 0.25 mm
Contacts Usage
standard contacts
Fixing Collar Material
zamak
Contact Operation
slow-break
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Product Or Component Type
illuminated selector switch
Surge Withstand
1 kV IEC 61000-4-5
Fixing Mode
by screws 0.8 N.m 0.8 to 1.2 Nm)
Head Type
built-in-flush
Mechanical Durability
1000000 cycles
Shape Of Signaling Unit Head
round
Supply Voltage Limits
19.2-30 V DC || 21.6-26.4 V AC
Ik Degree Of Protection
IK06 IEC 50102
Signalling Type
steady
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Protective Treatment
TH
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Current Consumption
18 mA
Light Source
universal LED
Tightening Torque
0.8-1.2 N.m EN 60947-1
Ambient Air Temperature For Storage
-40-70°C

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Red, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included
