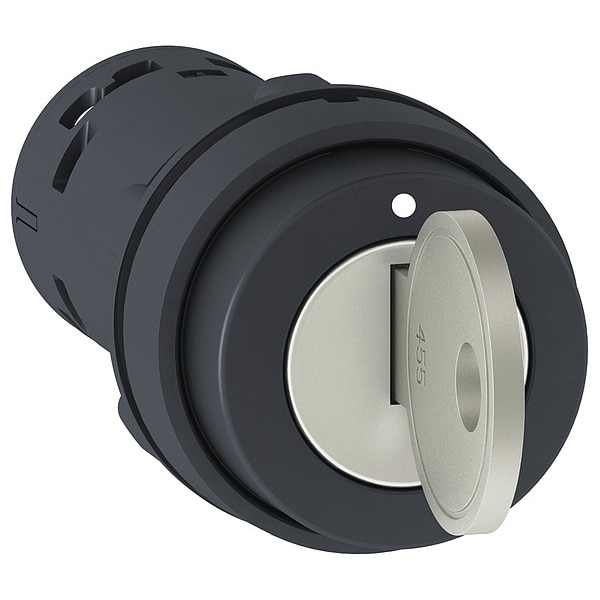

Selector Switch, Keyed, 2 Pos, 22 mm

  • Mfr # XB7NG21

  • Zoro # G0200508

product price:  $44.49
/ea
Sold in multiples of 10 for $444.90

Key Features

Size
22 mm
Type of Operator
Keyed
Contact Form
1NO
Action
Maintained/Maintained
Operator Head Material
Metal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB7NG21
Zoro #
G0200508
UPC #
785901205050
Country of Origin
Indonesia

Dimensions

Size
22 mm
Cad Overall Depth
83 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Selector Switch
Type of Operator
Keyed
Contact Form
1NO
Action
Maintained/Maintained
Operator Head Material
Metal
Cam
No Cam Included
Color
Silver
NEMA Rating
12, 3
Bezel Material
Plastic
Key Removal
Left
Bezel Color
Black
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
Includes
Key
AC Contact Rating
0.3 A @ 240 V, 0.6 A @ 120 V
IP Rating
IP20, IP65
Contact Rating
0.1A @ 250V DC, 0.22A @ 125V DC, 0.3A @ 125V AC, 0.6A @ 120V AC
Series
XB7
NEMA Contact Rating Designation
D600/R600
Shock Resistance
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Electrical Shock Protection Class
class II IEC 61140
Terminals Description Iso N°1
(13-14)NO
Shape Of Signaling Unit Head
round
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
selector switch
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1
Nema Degree Of Protection
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Operator Position Information
2 positions 90°
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34 to 2 x 2.5 mm² without cable end EN/IEC 60947-1
Key Withdrawal Position
left-hand
Contact Operation
slow-break
Ip Degree Of Protection
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Device Short Name
XB7
[Ui] Rated Insulation Voltage
250 V 3)EN/IEC 60947-1
Short-Circuit Protection
4 A cartridge fuse gG EN/IEC 60947-5-1
Protective Treatment
TH
[Ie] Rated Operational Current
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Electrical Durability
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
Contacts Type And Composition
1 NO
Shape Of Screw Head
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ambient Air Temperature For Operation
-25-70°C
Fixing Center
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Tightening Torque
0.8-1.2 N.m EN 60947-1
Fixing Mode
fixing nut 2-2.4 N.m
Type Of Keylock
key 455
Device Mounting
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Positive Opening
without
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
300000 cycles
Electrical Reliability
λ < 10exp(-6) 17 V 5 mA IEC 60947-5-4
Rated Operational Current
0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1; 0.3 A 240 V, AC-14, D300 IEC 60947-5-1; 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Rated Impulse Withstand Voltage
4 kV IEC 60947-1
Rated Insulation Voltage
250 V 3)IEC 60947-1
Terminals Description Iso N°1
(13-14)NO
Operator Head Type
Keyed
Operator Head Color
Black
Operator Illumination
Non-Illuminated
Includes Operator Key
Key Included
Hazardous Location Specification
Not Rated
Key Removal Position
Left
NEMA Enclosure Rating
12, 3, 4
Switch Function @ 1st Position
Off
Number of Positions
2
Switch Function @ 3rd Position
No Third Position
Switch Function @ 2nd Position
On
Switch Function @ 4th Position
No Fourth Position

Description

Selector Switch, 22 mm, Maintained/Maintained Action, 1NO Contact Form, Type of Operator Keyed, Color Silver, Left Key Removal, Operator Head Material Metal, Bezel Material Plastic, Bezel Color Black, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 0.3A @ 125V AC, 0.6A @ 120V AC, NEMA Contact Rating Designation D600/R600, NEMA Rating 12, 3, IP Rating IP20, IP65, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1, JIS C8201-5-1, UL 508, Includes Key
