  13. SelectorSwitch, Illum, 2Pos, 30mm, Green

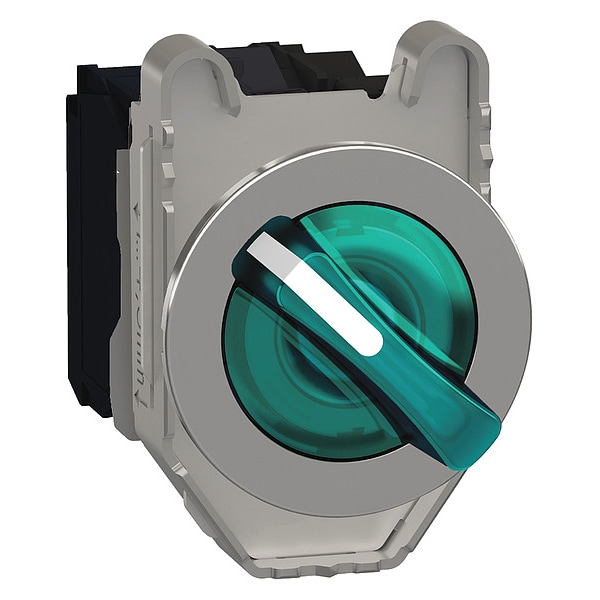

Schneider Electric SelectorSwitch, Illum, 2Pos, 30mm, Green XB4FK123M5 - main

SelectorSwitch, Illum, 2Pos, 30mm, Green

  • Mfr # XB4FK123M5

  • Zoro # G3596617

product price: $99.39
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB4FK123M5
Zoro #
G3596617
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Width
36.6 mm
Height
53 mm
Depth
69.5 mm
Overall Height
2.09 in
Overall Depth
2.74 in
Panel Cutout Diameter
30 mm
Overall Width
1.44 in
Mounting Diameter
30.5 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Lever
Contact Form
1NO/1NC
Action
Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Color
Green
NEMA Rating
12, 13, 4, 4X
Bezel Material
Chrome Plated Metal
Position
2
Bezel Color
Chrome
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Lamp Module Type
Full Voltage
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Switch Operation @ Position D
No Fourth Position
Lamp Module Voltage
230 to 240V AC
Series
XB4
Lamp Type
LED
Lamp Voltage
230 to 240V AC/DC
Switch Operation @ Position C
No Third Position
NEMA Contact Rating Designation
A600/Q600
Standards
CCC, CSA, EAC, UL Listed
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
IP Rating
IP66, IP67, IP69, IP69K
Hazardous Location Specification
Not Rated
Operator Head Color
Green
Number of Positions
2
Switch Function @ 1st Position
Off
Lamp Voltage - Maximum
240 V AC
Switch Function @ 3rd Position
No Third Position
Operator Head Type
Short-Handled Knob
Switch Function @ 2nd Position
On
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Switch Function @ 4th Position
No Fourth Position
Contact Block Material
Metal
Operator Illumination
Illuminated
Ik Degree Of Protection
IK06 IEC 50102
[Us] Rated Supply Voltage
230 to 240 V AC 50/60 Hz
Operator Position Information
2 positions 90°
Device Presentation
complete product
Device Short Name
XB4F
Resistance To Fast Transients
2 kV IEC 61000-4-4
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Fixing Mode
by screws 0.8 N.m 0.8 to 1.2 Nm)
Terminals Description Iso N°1
(13-14)NO || (21-22)NC
Electrical Shock Protection Class
class I IEC 60536
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Mechanical Durability
1000000 cycles
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Supply Voltage Limits
195-264 V AC
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contacts Type And Composition
1 NO + 1 NC
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Usage
standard contacts
Light Source
universal LED
Product Certifications
UL Listed || CSA || CCC || EAC
Contacts Material
silver alloy (Ag/Ni)
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Mounting
built-in 30.75 mm +/- 0.25 mm
Contact Operation
slow-break
Operator Profile
green standard handle
Ambient Air Temperature For Storage
-40-70°C
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Surge Withstand
1 kV IEC 61000-4-5
Ip Degree Of Protection
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Protective Treatment
TH
Signalling Type
steady
Bulb Base
integral LED
Ambient Air Temperature For Operation
-40-70°C
Head Type
built-in-flush
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Current Consumption
14 mA
Operating Torque
0.14 N.m NO changing electrical state
Product Or Component Type
illuminated selector switch
Electromagnetic Emission
class B IEC 55011
Fixing Collar Material
zamak
Shape Of Signaling Unit Head
round
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Green, Operator Head Material Plastic, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included
