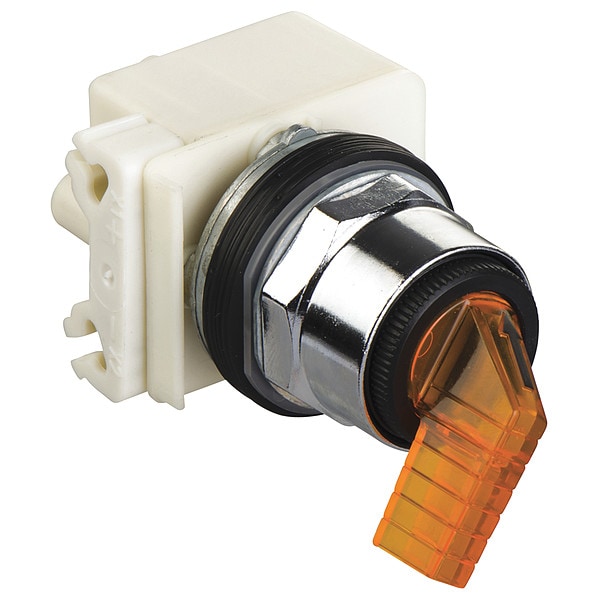

Schneider Electric SelectorSwitch, Illum, 2Pos, 30mm, Yellow 9001K11J35LY - main

SelectorSwitch, Illum, 2Pos, 30mm, Yellow

  • Mfr # 9001K11J35LY

  • Zoro # G3571216

product price: $132.99
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Metal
Type of Operator
Long Handle
Action
Maintained/Maintained
Operator Head Material
Polycarbonate
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001K11J35LY
Zoro #
G3571216
UPC #
-
Country of Origin
Mexico

Dimensions

Size
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo
Mounting Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Metal
Type of Operator
Long Handle
Action
Maintained/Maintained
Operator Head Material
Polycarbonate
Cam
E
Color
Yellow
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 6
Position
2
Bezel Material
Metal
Bezel Color
Chrome
Series
9001K
Switch Operation @ Position D
No Fourth Position
IP Rating
IP66
Lamp Type
LED
Lamp Module Type
Full Voltage
Switch Operation @ Position C
No Third Position
Standards
UL 508
Operator Head Type
Short-Handled Knob
Lamp Voltage - Maximum
28 V
Hazardous Location Specification
Not Rated
Operator Head Color
Yellow
Number of Positions
2
Contact Block Material
Metal
Switch Function @ 2nd Position
On
Operator Illumination
Illuminated
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Switch Function @ 4th Position
No Fourth Position
Switch Function @ 1st Position
Off
Switch Function @ 3rd Position
No Third Position
Ambient Air Temperature For Operation
-25-70°C
Device Presentation
basic element
Operator Profile
yellow standard knob
Product Or Component Type
head for illuminated selector switch
[Us] Rated Supply Voltage
24 to 28 V AC/DC
Bulb Base
BA 9s
Shock Resistance
50 gn IEC 60068-2-27
Ip Degree Of Protection
IP66 IEC 60529
Mechanical Durability
500000 cycles
Electrical Shock Protection Class
class II IEC 61140
Product Certifications
UL 508 || NEMA
Protective Treatment
TC
Ambient Air Temperature For Storage
-40-70°C
Shape Of Signaling Unit Head
round
Operator Position Information
2 positions
Light Block Colour
yellow
Light Source
LED
Contacts Type And Composition
without contact block
Device Short Name
9001K
Light Block Supply
direct
Nema Degree Of Protection
NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, Not Applicable Contact Form, Type of Operator Long Handle, Color Yellow, Operator Head Material Polycarbonate, Basic Material Metal, Bezel Material Metal, Bezel Color Chrome, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating IP66, Cam E, Switch Operation @ Position C No Third Position, Switch Operation @ Position D No Fourth Position, Standards UL 508
