  13. SelectorSwitch, Illum, 3Pos, 30mm, Green

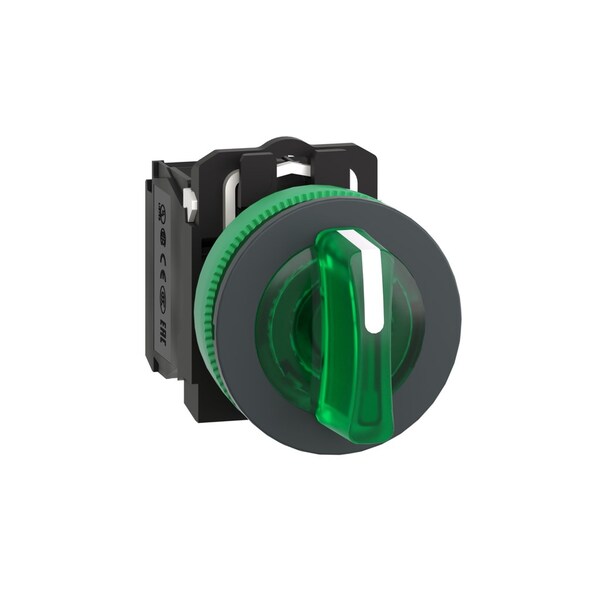

Schneider Electric SelectorSwitch, Illum, 3Pos, 30mm, Green XB5FK133B5 - main

SelectorSwitch, Illum, 3Pos, 30mm, Green

  • Mfr # XB5FK133B5

  • Zoro # G0200587

product price: $90.79
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5FK133B5
Zoro #
G0200587
UPC #
-
Country of Origin
France

Dimensions

Size
30 mm
Height
42 mm
Width
36.6 mm
Depth
71 mm
Mounting Diameter
30.5 mm
Panel Cutout Diameter
30 mm
Overall Height
1.65 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.8 in
Overall Width
1.44 in

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Contact Form
1NO/1NC
Cam
No Cam Included
Operator Head Material
Plastic
Color
Green
NEMA Rating
13, 4X
Position
3
Bezel Material
Plastic
Standards
CSA, UL Listed
Lamp Type
LED
IP Rating
IP66, IP67, IP69, IP69K
Lamp Module Voltage
24V AC/DC
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Lamp Voltage
24V DC
Series
XB5
NEMA Contact Rating Designation
A600/Q600
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Lamp Module Type
Full Voltage
Switch Operation @ Position D
No Fourth Position
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Mechanical Durability
500000 cycles
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Electrical Shock Protection Class
class II IEC 60536
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
Protective Treatment
TH
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Head
round
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Light Source
universal LED
Operator Position Information
3 positions +/- 45°
Product Certifications
UL Listed || CSA
Ambient Air Temperature For Operation
-40-70°C
Device Short Name
XB5F
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Product Or Component Type
illuminated selector switch
Bulb Base
integral LED
Contacts Type And Composition
1 NO + 1 NC
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operator Profile
green standard handle, unmarked
Device Presentation
complete product
Contacts Material
silver alloy (Ag/Ni)
Supply Voltage Limits
19.2 - 30 V DC || 21.6-26.4 V AC
Head Type
built-in-flush
Contact Operation
slow-break
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Contacts Usage
standard contacts
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Ik Degree Of Protection
IK03 IEC 50102
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Rated Insulation Voltage
600 V 3)IEC 60947-1
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description ISO n°1
(21-22)NC; (13-14)NO
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Terminals Description ISO n°1
(21-22)NC; (13-14)NO
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Operator Head Type
Short-Handled Knob
Lamp Voltage - Maximum
24 V AC/DC
Switch Function @ 3rd Position
On
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
Green
Switch Function @ 2nd Position
Off
Switch Function @ 1st Position
On
Operator Illumination
Illuminated
Switch Function @ 4th Position
No Fourth Position
Hazardous Location Specification
Not Rated
Number of Positions
3
Contact Block Material
Plastic

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Green, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position D No Fourth Position
