Action
Maintained/Maintained/Maintained
Operator Head Material
Plastic
Lamp Module Type
Full Voltage
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
IP Rating
IP66, IP67, IP69, IP69K
Standards
CE, CSA C22.2 No.14, EN 60947-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-1 Appendix C, EN/IEC 60947-5-4, EU RoHS Pro-Active Compliance, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, IEC 60536, JIS C8201-1, JIS C8201-5-1, Marine Approval, UL 508, WEEE
Contact Rating
0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Lamp Module Voltage
24V AC/DC
Switch Operation @ Position D
No Fourth Position
NEMA Contact Rating Designation
A600/Q600
Switch Function @ 3rd Position
On
Operator Head Type
Short-Handled Knob
Switch Function @ 2nd Position
Off
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
Orange
Contact Block Material
Plastic
Hazardous Location Specification
Not Rated
Operator Illumination
Illuminated
Switch Function @ 4th Position
No Fourth Position
Lamp Voltage - Maximum
24 V AC/DC
Switch Function @ 1st Position
On
Supply Voltage Limits
19.2 - 30 V DC || 21.6-26.4 V AC
Mechanical Durability
500000 cycles
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Tightening Torque
0.8-1.2 N.m EN 60947-1
Device Presentation
complete product
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Storage
-40-70°C
[Us] Rated Supply Voltage
24 V AC/DC 50/60 Hz
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Contact Operation
slow-break
Contacts Material
silver alloy (Ag/Ni)
Contacts Type And Composition
1 NO + 1 NC
Operator Position Information
3 positions +/- 45°
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Ambient Air Temperature For Operation
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Ik Degree Of Protection
IK03 IEC 50102
Shape Of Signaling Unit Head
round
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operator Profile
orange standard handle, unmarked
Product Certifications
UL Listed || CSA
Electrical Shock Protection Class
class II IEC 60536
Terminals Description Iso N°1
(21-22)NC || (13-14)NO
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Terminals Description ISO n°1
(21-22)NC; (13-14)NO
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Product Or Component Type

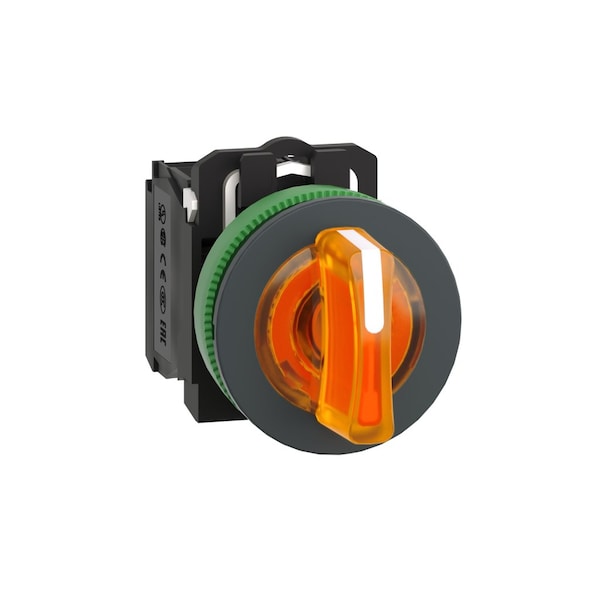

illuminated selector switch
Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Rated Insulation Voltage
600 V 3)IEC 60947-1
Light Source
universal LED
Contacts Usage
standard contacts
Positive Opening
with NC contact EN/IEC 60947-5-1 appendix K
