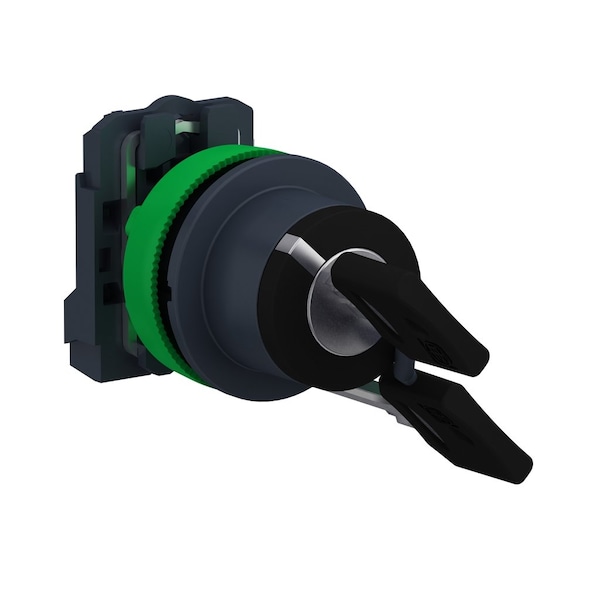

SelectorSwitch, Keyed, 2Pos, 30mm, Black

  • Mfr # XB5FG21

  • Zoro # G3546935

product price:
$
90.65
/ea

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Keyed
Contact Form
1NO
Action
Maintained/Maintained
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XB5FG21
Zoro #
G3546935
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Depth
98.5 mm
Width
36.6 mm
Height
42 mm
Mounting Diameter
30.5 mm
Manufacturer Warranty Length
18 mo
Overall Width
1.44 in
Overall Height
1.65 in
Overall Depth
3.88 in
Panel Cutout Diameter
30 mm

Details

Item
Selector Switch
Basic Material
Plastic
Type of Operator
Keyed
Contact Form
1NO
Action
Maintained/Maintained
Operator Head Material
Metal
Cam
No Cam Included
Color
Black
NEMA Rating
13, 4X
Bezel Material
Plastic
Position
2
Switch Operation @ Position D
No Fourth Position
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Standards
CSA, UL Listed
Switch Operation @ Position C
No Third Position
Contact Rating
0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66, IP67, IP69, IP69K
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series
XB5
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contacts Type And Composition
1 NO
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Operator Profile
black key switch, unmarked
Product Certifications
UL Listed || CSA
Ambient Air Temperature For Storage
-40-70°C
Operator Position Information
2 positions 90°
Device Presentation
complete product
Tightening Torque
0.8-1.2 N.m EN 60947-1
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Electrical Shock Protection Class
class II IEC 60536
Terminals Description Iso N°1
(13-14)NO
Device Short Name
XB5F
Product Or Component Type
selector switch
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Mechanical Durability
1000000 cycles
Ik Degree Of Protection
IK03 IEC 50102
Contact Operation
slow-break
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Key Withdrawal Position
left
Ambient Air Temperature For Operation
-40-70°C
Head Type
built-in-flush
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Contacts Material
silver alloy (Ag/Ni)
Protective Treatment
TH
Shape Of Signaling Unit Head
round
Positive Opening
without
Contacts Usage
standard contacts
Type Of Keylock
key 455
Terminals Description Iso N°1
(13-14)NO
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Operator Illumination
Non-Illuminated
Operator Head Type
Keyed
Switch Function @ 1st Position
Off
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Operator Head Color
Black
Contact Block Material
Plastic
Includes Operator Key
Key Included
Number of Positions
2
Key Removal Position
Left
Switch Function @ 3rd Position
No Third Position
Switch Function @ 2nd Position
On

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO Contact Form, Type of Operator Keyed, Color Black, Operator Head Material Metal, Basic Material Plastic, Bezel Material Plastic, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position C No Third Position
