  13. ShortHandleSelectorSwitch, Blk, 2Pos, 22mm

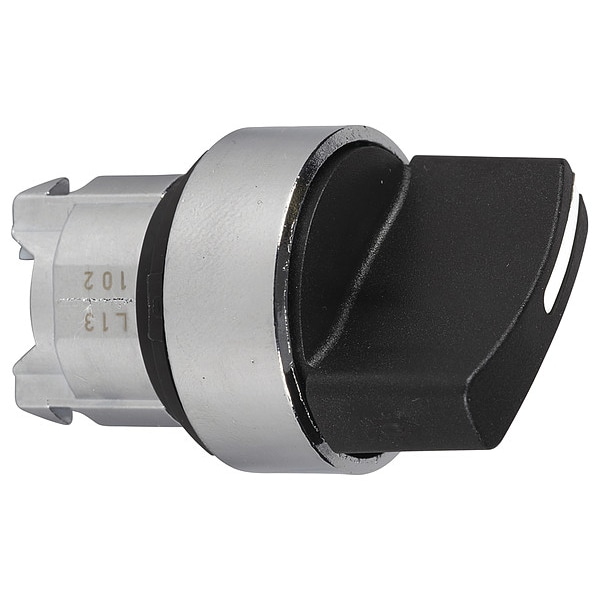

Schneider Electric ShortHandleSelectorSwitch, Blk, 2Pos, 22mm ZB4BD2TQ - main

ShortHandleSelectorSwitch, Blk, 2Pos, 22mm

  • Mfr # ZB4BD2TQ

  • Zoro # G3571234

product price: $25.45
/ea
Sold in multiples of 100 for $2,545.00

Key Features

Size
22 mm
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BD2TQ
Zoro #
G3571234
UPC #
785901910374
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
44 mm
Mounting Diameter
22 mm
Cad Overall Width
29 mm
Cad Overall Height
29 mm
Panel Cutout Diameter
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Short-Handled Selector Switch
Basic Material
Metal
Type of Operator
Lever
Action
Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
NEMA Rating
13, 4X
Position
2
Bezel Material
Chrome Plated Metal
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position C
No Third Position
IP Rating
IP67, IP69, IP69K
Key Number
No Key
Series
XB4
Switch Operation @ Position D
No Fourth Position
Shape Of Signaling Unit Head
round
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Short Name
ZB4
Head Type
standard
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Operator Position Information
2 positions 90°
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
Product Certifications
CSA || BV || UL Listed || LROS (Lloyds register of shipping) || GL || DNV
Protective Treatment
TH
Ik Degree Of Protection
IK06 IEC 50102
Ambient Air Temperature For Storage
-40-70°C
Operator Profile
black standard handle
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Overvoltage Category
class I IEC 60536
Product Or Component Type
head for selector switch
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP67 IEC 60529 || IP69 || IP69K
Mechanical Durability
1000000 cycles
Ambient Air Temperature For Operation
-40-70°C
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification
Not Rated
Number of Positions
2
Operator Head Color
Black
Operator Illumination
Non-Illuminated
Operator Head Type
Short-Handled Knob
Switch Function @ 3rd Position
No Third Position

Description

Short-Handled Selector Switch, 22 mm, 2 Position, Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, NEMA Rating 13, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
