  13. ShortHandleSelectorSwitch, Blk, 3Pos, 22mm

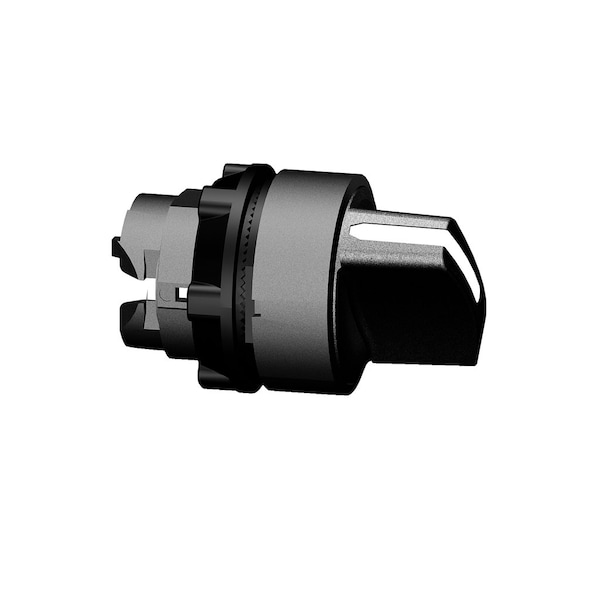

Schneider Electric ShortHandleSelectorSwitch, Blk, 3Pos, 22mm ZB5AD3TQ - main

ShortHandleSelectorSwitch, Blk, 3Pos, 22mm

  • Mfr # ZB5AD3TQ

  • Zoro # G3607485

product price: $18.99
/ea

Key Features

Size
22 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Cam
No Cam Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB5AD3TQ
Zoro #
G3607485
UPC #
785901948407
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Depth
46 mm
Cad Overall Height
29 mm
Cad Overall Width
29 mm
Mounting Diameter
22 mm
Manufacturer Warranty Length
18 mo
Panel Cutout Diameter
22 mm

Details

Item
Short-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Maintained/Maintained/Maintained
Cam
No Cam Included
Operator Head Material
Plastic
Operator Color
Black
NEMA Rating
13, 4X
Bezel Material
Plastic
Position
3
Series
XB5
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Switch Operation @ Position D
No Fourth Position
IP Rating
IP67, IP69, IP69K
Key Number
No Key
Operator Position Information
3 positions +/- 45°
Overvoltage Category
class II IEC 60536
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability
1000000 cycles
Product Certifications
UL Listed || BV || CSA || DNV || GL || LROS (Lloyds register of shipping)
Ik Degree Of Protection
IK06 IEC 50102
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Head Type
standard
Station Name
XALD 1 to 5 cut-outs
Shape Of Signaling Unit Head
round
Operator Profile
black standard handle
Electrical Composition Code
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
Protective Treatment
TH
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Ambient Air Temperature For Operation
-40-70°C
Device Short Name
ZB5
Product Or Component Type
head for selector switch
Ip Degree Of Protection
IP67 IEC 60529 || IP69 IEC 60529 || IP69K
Nema Degree Of Protection
NEMA 13 || NEMA 4X
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X
Hazardous Location Specification
Not Rated
Switch Function @ 4th Position
No Fourth Position
Number of Positions
3
Operator Head Type
Short-Handled Knob
Operator Head Color
Black
Operator Illumination
Non-Illuminated

Description

Short-Handled Selector Switch, 22 mm, 3 Position, Maintained/Maintained/Maintained Action, Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Plastic, NEMA Rating 13, 4X, IP Rating IP67, IP69, IP69K, Cam No Cam Included, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
