  13. ShortHandleSelectorSwitch, Blk, 3Pos, 30mm

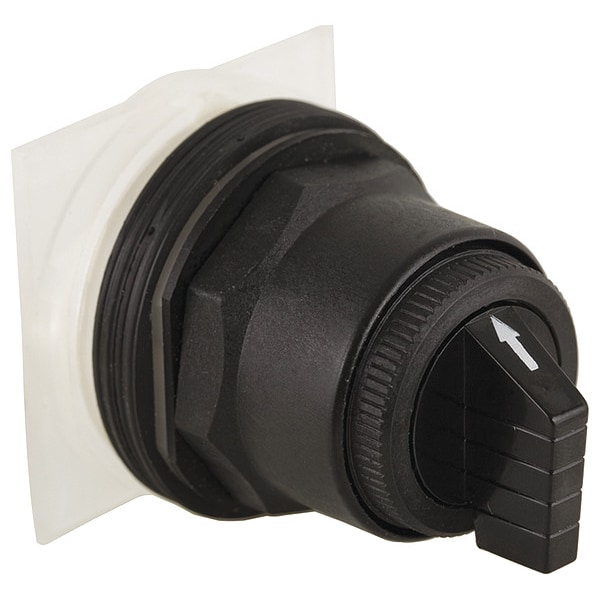

Schneider Electric ShortHandleSelectorSwitch, Blk, 3Pos, 30mm 9001SKS53B - main

ShortHandleSelectorSwitch, Blk, 3Pos, 30mm

  • Mfr # 9001SKS53B

  • Zoro # G3548852

product price: $85.75
/ea
Free Shipping & Returns

Key Features

Size
30 mm
Basic Material
Plastic
Type of Operator
Lever
Action
Momentary/Maintained/Momentary
Operator Head Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKS53B
Zoro #
G3548852
UPC #
785901848868
Country of Origin
Mexico

Dimensions

Size
30 mm
Mounting Diameter
30 mm
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Short-Handled Selector Switch
Basic Material
Plastic
Type of Operator
Lever
Action
Momentary/Maintained/Momentary
Operator Head Material
Plastic
Cam
C
Operator Color
Black
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Bezel Material
Plastic
Position
3
IP Rating
IP66
Standards
CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR
Key Number
No Key
Switch Operation @ Position D
No Fourth Position
Series
9001SK
Operator Position Information
3 positions
Ambient Air Temperature For Operation
-25-70°C
Product Certifications
UL listed file E42259 CCN NKCR || CE || CSA LR24590 class 3211 03
Device Presentation
basic element
Protective Treatment
TC
Contacts Type And Composition
without contact block
Product Or Component Type
head for selector switch
Ambient Air Temperature For Storage
-40-70°C
Ip Degree Of Protection
IP66 IEC 60529
Electrical Shock Protection Class
class II IEC 61140
Device Short Name
9001SK
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13
Operator Head Type
Short-Handled Knob
Operator Head Color
Black
Operator Illumination
Non-Illuminated
Hazardous Location Specification
Not Rated
Number of Positions
3
Switch Function @ 4th Position
No Fourth Position
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Short-Handled Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, Lever Type of Operator, Operator Color Black, Operator Head Material Plastic, Bezel Material Plastic, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Cam C, Standards CE, CSA LR24590 Class 3211 03, UL E42259 CCN NKCR, Key Number No Key
