  8. Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC

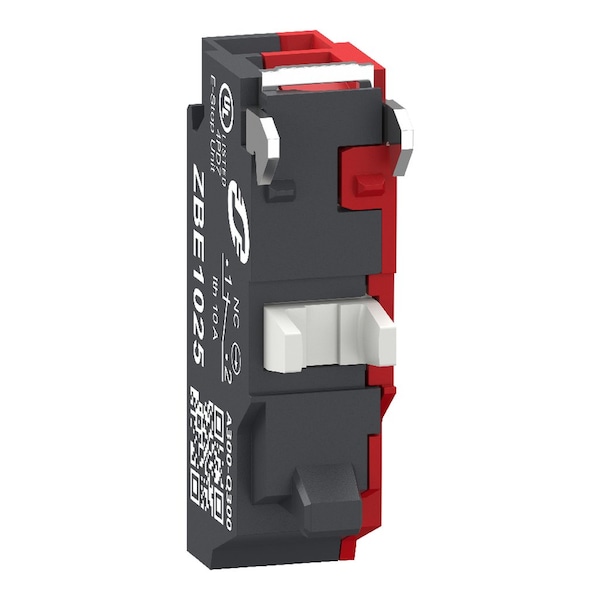

Schneider Electric Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC ZBE1025 - main
Shop SCHNEIDER ELECTRIC

Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NC

  • Mfr # ZBE1025

  • Zoro # G7654746

product price:  $16.55
/ea

Key Features

Standards
UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Height
14.8 mm
Width
34.3 mm
Mounting Of Block
front mounting
Protective Treatment
TH
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZBE1025
Zoro #
G7654746
UPC #
-
Country of Origin
France

Dimensions

Height
14.8 mm
Width
34.3 mm

Details

Item
N/C Contact With Spring Clamp
Standards
UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
Mounting Of Block
front mounting
Protective Treatment
TH
Contacts Type And Composition
1 NC
Ip Degree Of Protection
IP20 IEC 60529
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Operating Force
2 N NC changing electrical state
Device Short Name
ZBE
Device Presentation
basic element
Electrical Composition Code
C11 3 ) || C14 2 ) || M10 2 )
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Contact Block Type
single
Product Certifications
BV || CCC || GL || LROS (Lloyds register of shipping) || GOST || DNV || CSA || UL
Positive Opening
with EN/IEC 60947-5-1 appendix K
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Ambient Air Temperature For Storage
-40-70°C
Product Or Component Type
contact block
Contacts Usage
standard contacts
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Contact Operation
slow-break
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Ambient Air Temperature For Operation
-40-70°C
Contacts Material
silver alloy (Ag/Ni)
Mechanical Durability
10000000 cycles
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Connections - Terminals
spring clamp terminals
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Range of Product
Harmony XB5, Harmony XB4

Description

This Harmony XB4 and Harmony XB5 single contact block uses push-in terminal connections. It features 1 normally closed (NC) contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. Compact, it is easily installed and replaced on XB4 or XB5 push-button units and selector switches via a clip assembly and connects to control circuits with push-in terminal connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NC contact block types. Vibration resistant push-in connection terminals ensure high vibration resistance making product suitable installation on high impact machine. This contact block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
