  8. Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NO

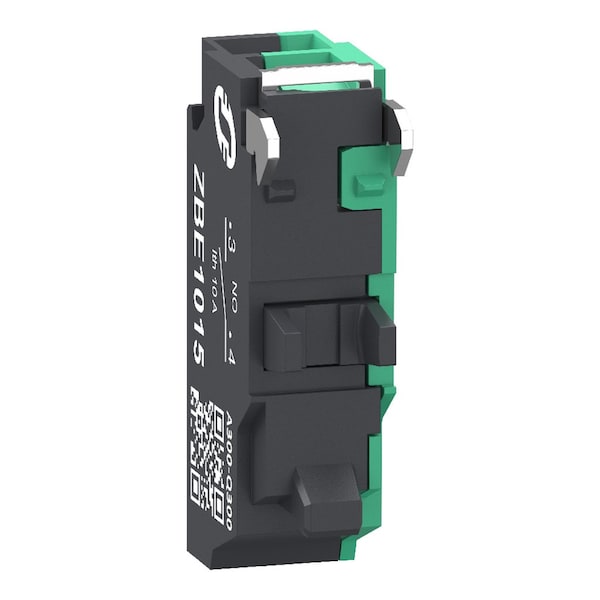

Schneider Electric Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NO ZBE1015 - main

Single contact block, Harmony XB4, Hamony XB5, silver alloy, compact push in terminals, 1 NO

  • Mfr # ZBE1015

  • Zoro # G7654983

product price:  $15.95
/ea

Key Features

Standards
JIS C8201-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-1
Height
14.8 mm
Width
34.3 mm
Ambient Air Temperature For Storage
-40-70°C
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZBE1015
Zoro #
G7654983
UPC #
-
Country of Origin
France

Dimensions

Height
14.8 mm
Width
34.3 mm

Details

Item
N/O Contact With Spring Clamp
Standards
JIS C8201-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-1
Ambient Air Temperature For Storage
-40-70°C
Short-Circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
[Ui] Rated Insulation Voltage
600 V 3)IEC 60947-1
Electrical Composition Code
C1 9 ), C2 7 ), C3 6 )
Protective Treatment
TH
Range of Product
Harmony XB5, Harmony XB4
Ip Degree of Protection
IP20 IEC 60529
Product or Component Type
contact block
Contact Operation
slow-break
Device Presentation
basic element
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
Contacts Type And Composition
1 NO
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Contacts Material
silver alloy (Ag/Ni)
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Connections - Terminals
spring clamp terminals
Mechanical Durability
10000000 cycles
Contact Block Type
single
Positive Opening
without
Ambient Air Temperature For Operation
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Mounting of Block
front mounting
Device Short Name
ZBE
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Operating Travel
2.6 mm NO changing electrical state), 4.3 mm total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force
2.3 N NO changing electrical state
Contacts Usage
standard contacts
Mounting Of Block
front mounting
Product Or Component Type
contact block
Product Certifications
GOST || BV || CCC || DNV || GL || LROS (Lloyds register of shipping) || UL || CSA
Ip Degree Of Protection
IP20 IEC 60529

Description

This Harmony XB4 and Harmony XB5 single contact block uses push-in terminal connections. It features 1 normally open (NO) contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. Compact, it is easily installed and replaced on XB4 or XB5 push-button units and selector switches via a clip assembly and connects to control circuits with push-in terminal connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO contact block types. Vibration resistant push-in connection terminals ensure high vibration resistance making product suitable installation on high impact machine. This contact block is sold by 5. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
