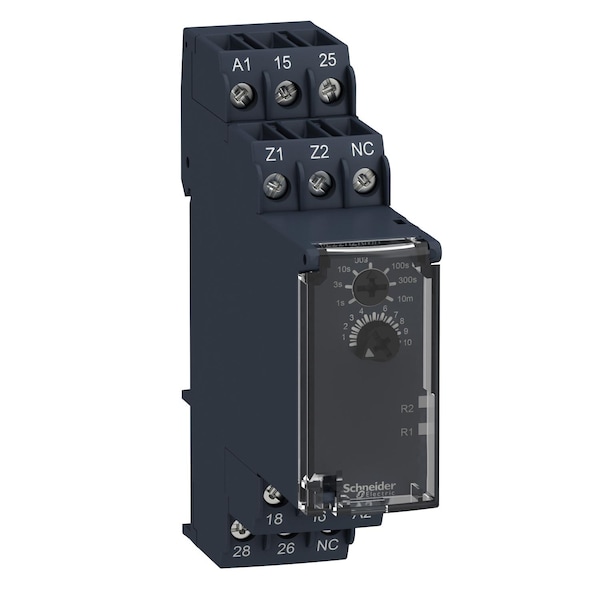

Single function relay, Harmony Timer Relays, 5A, 2CO, 0.05s.10min, delay on de energization, 24.240V AC DC
Mfr #RE22R2KMR
Zoro #G7122471
product price:$109.99
/ea
Free Shipping & Returns
Key Features
Standards
IEC 61812-1 || UL 508
Width
22.5 mm
Product Certifications
EAC || UL || RCM || GL || CCC || CSA || CE
Housing Material
self-extinguishing
Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Electromagnetic Compatibility
fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11
Maximum Switching Voltage
250 V AC
Reset Time
100 ms on de-energisation
Immunity To Microbreaks
10 ms
Time Delay Range
10...100 s || 0.05...1 s || 30...300 s || 3...30 s || 1...10 min || 1...10 s || 0.3...3 s
Relative Humidity
95-95 % 25-55°C
Contacts Type And Composition
2 C/O timed contact, cadmium free
Switching Capacity In Va
1250 VA
Ambient Air Temperature For Storage
-40-70°C
Device Short Name
RE22
Input Voltage
<= 2.4 V
Ambient Air Temperature For Operation
-20-60°C
Mounting Support
35 mm DIN rail conforming to EN/IEC 60715
Maximum Delay Response
200 ms
Dielectric Strength
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
Repeat Accuracy
+/- 0.5 % IEC 61812-1
Product Or Component Type
single function relay
Nominal Output Current
5A
Overvoltage Category
III IEC 60664-1
Insulation Resistance
100 MOhm 500 V DC IEC 60664-1
[Uimp] Rated Impulse Withstand Voltage
5 kV 1.2-50µs IEC 60664-1
Power Consumption In W
2 W 240 V DC
Setting Accuracy Of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Status Led
Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED steady)power ON
Tightening Torque
0.6-1 N.m IEC 60947-1
Vibration Resistance
20 m/s² 10-150 Hz)IEC 60068-2-6
Maximum Switching Current
5A
Voltage Range
0.85...1.1 Us
Pollution Degree
3 IEC 60664-1
Creepage Distance
4 kV/3 IEC 60664-1
Minimum Switching Current
10 mA 5 V DC
Supply Frequency
50...60 Hz +/- 5 %
Mechanical Durability
10000000 cycles
Discrete Output Type
relay
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz
Voltage Drift
+/- 0.2 %/V
Mounting Position
any position
Electrical Durability
100000 cycles, 2 A at 24 V, DC-1 || 100000 cycles, 5 A at 250 V, AC-1
