CAD Drawings
Download CAD Files

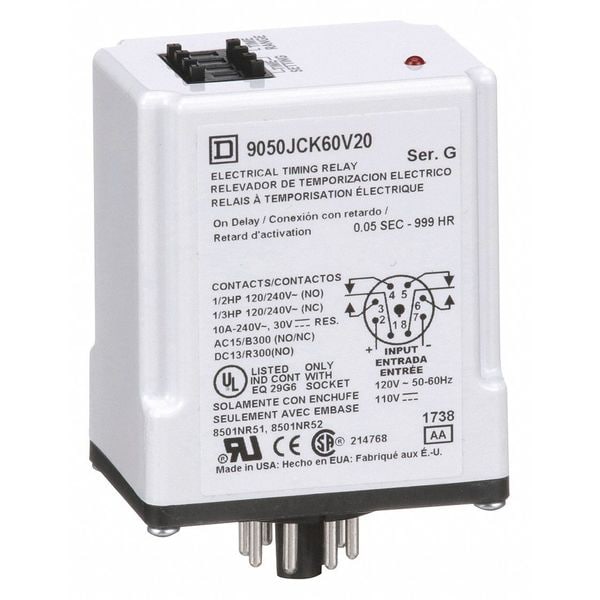

Single Function Time Delay Relay, Octal, On Delay, 1 Functions 120V AC, DPDT
Mfr # 9050JCK60V20
Zoro # G1698277
CAD Available
product price: $164.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Delay Function
On Delay
Number of Delay Functions
1
Minimum Time Setting
0.5 sec
Maximum Time Setting
999 hr
Base Shape
Octal
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9050JCK60V20
Zoro #
G1698277
UPC #
785901053866
Country of Origin
United States
Dimensions
Overall Height - Relay
4.1 in
Depth
91 mm
Body Depth
2.88 in
Overall Depth
3.55 in
Body Width
1.75 in
Body Height
2.38 in
Description
Single Function Time Delay Relay, Adjustment Method Dip Switch, Base Shape Octal, Coil Voltage 120V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 120/240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, Input Voltage 120V AC, Minimum Time Setting 0.5 sec, Maximum Time Setting 999 hr, Number of Pins 8, Sealing Sealed, Mounting Style Plug-In, Body Depth 2.88 in
