  7. Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 12 to 24V AC DC

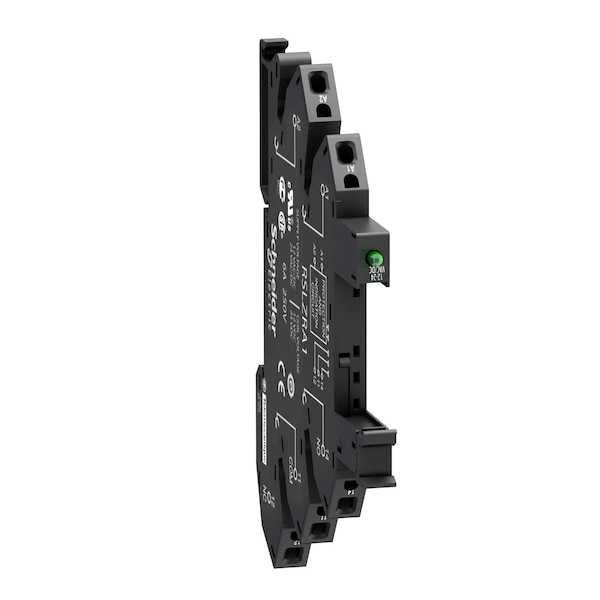

Schneider Electric Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 12 to 24V AC DC RSLZRA1 - main

Socket equipped with LED and protection circuit, Harmony Electromechanical Relays, for RSL1 relays, spring terminals, 12 to 24V AC DC

  • Mfr # RSLZRA1

  • Zoro # G300905262

product price:  $12.39
/ea
Sold in multiples of 10 for $123.90

Key Features

Standards
UL 508 || IEC 61984
Switching Voltage
12 V AC/DC || 24 V AC/DC
[Ue] Rated Operational Voltage
< 300 V AC
Marking
CE
Fixing Mode
plastic compression spring 35 mm symmetrical DIN rail)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSLZRA1
Zoro #
G300905262
UPC #
-
Country of Origin
China

Dimensions

Cad Overall Height
78.6 mm
Cad Overall Depth
101 mm
Cad Overall Width
6.2 mm

Details

Standards
UL 508 || IEC 61984
Item
Spring socket equipped w/LED and protect
Switching Voltage
12 V AC/DC || 24 V AC/DC
[Ue] Rated Operational Voltage
< 300 V AC
Marking
CE
Fixing Mode
plastic compression spring 35 mm symmetrical DIN rail)
Product Compatibility
plug-in relay RSL 1 C/O 12 V DC || plug-in relay RSL 1 C/O 24 V DC
Ip Degree Of Protection
IP20 conforming to EN/IEC 60529
Pollution Degree
3
Device Presentation
basic element
Device Short Name
RSLZ
Overvoltage Category
III
Compatibility Code
RSLZ
Contact Terminal Arrangement
separate
Ambient Air Temperature For Operation
-40-70°C
Clamping Force
10-40 N
Ambient Air Temperature For Storage
-40-85°C
Shape Of Pin
flat
[Ith] Conventional Free Air Thermal Current
6A
Rated Operational Voltage Limits
21.6...28.8 V || 11.4...14.4 V
Product Certifications
GOST || CSA
Product Or Component Type
socket
Dielectric Strength
2500 V
Connections - Terminals
spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
[Uimp] Rated Impulse Withstand Voltage
3.6 kV
Group Of Product
RSL_SPRING_TERS_12-24
Range of Product
Harmony Electromechanical Relays
Contacts Type And Composition
1 C/O

Description

Spring socket equipped w/LED and protect
