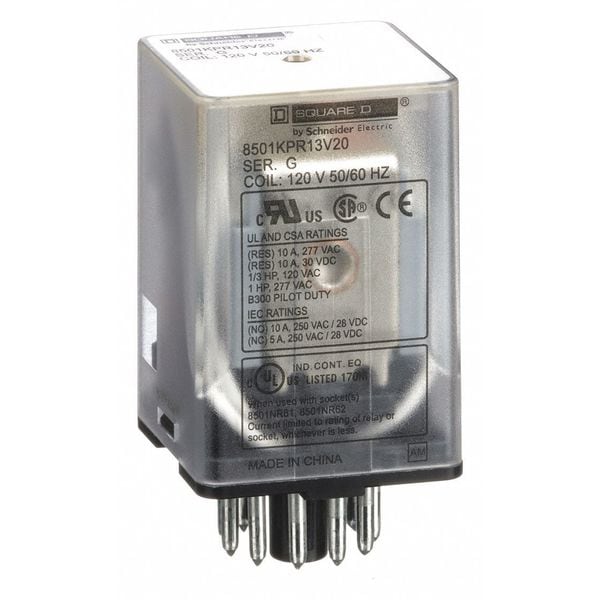

Socket, General Purpose Relay, Octal, 10 A, 11 Pins
Mfr # 8501KPR13V20
Zoro # G2315722
CAD Available
product price:Â
$
64.19
/ea
Key Features
CAD Drawing
Mounting Style
Socket
Electrical Connection
11-Pin Terminal
Base Shape
Octal
Number of Pins
11
Coil Voltage
120V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8501KPR13V20
- Zoro #
- G2315722
- UPC #
- 785901219743
- Country of Origin
- China
Dimensions
- Overall Height - Relay
- 2.6 in
- Body Height
- 1.4 in
- Overall Depth
- 2.7 in
- Body Depth
- 2.1 in
- Body Width
- 1.4 in
Description
General Purpose Relay, Base Shape Octal, Coil Voltage 120V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection 11-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 11, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in, Body Width 1.4 in
