  13. Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

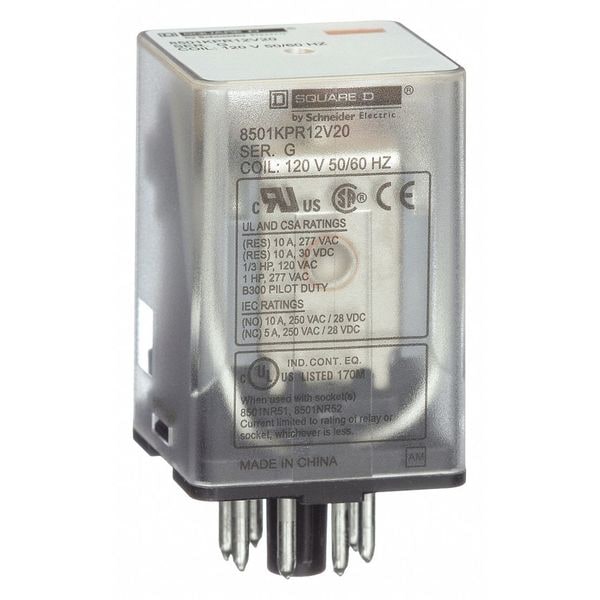

Schneider Electric Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin 8501KPR12V20 - main

CAD Viewer & Download Files

Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 8501KPR12V20

  • Zoro # G1648911

CAD Available
product price: $49.89
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8501KPR12V20
Zoro #
G1648911
UPC #
785901147329
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Body Depth
2.1 in
Body Height
1.4 in
Overall Depth
2.7 in
Body Width
1.4 in

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
HP @ 240V
1/2 hp
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Socket Code
A
Status Indicator
Mechanical Flag
HP @ 120V
1/3 hp
Standards
CE Certified, CSA Certified, UL Listed
Socket
Mfr. No. 8501NR51 or 8501NR52
Power Consumption - Relay
3 VA
Contact Material
Silver Alloy
Series
Square D 8501K Series
Compatible with Manufacturer Model Number
8501NR51, 8501NR52
Minimum Operating Temperature
-40 Degrees F
Power Consumption
3 VA
Horsepower @ 120V AC
1/3 hp
Pin Shape
Round
Sealing
Enclosed
Response Time
20 msec
Horsepower @ 240V AC
1/2 hp
Push-To-Test Method
No Test Button
Maximum Switching Voltage
300V AC, 30V DC
Motor Rated
Yes
Maximum Operating Temperature
131 Degrees F
Compatible Manufacturer Part Number
8501NR51, 8501NR52
Compatible Manufacturer Model Number
8501NR51, 8501NR52
Switching Voltage
300 V AC; 30 V DC
Operating Time
20 ms - pick-up || 20 ms - drop-out
CAD Available
Yes

Description

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
