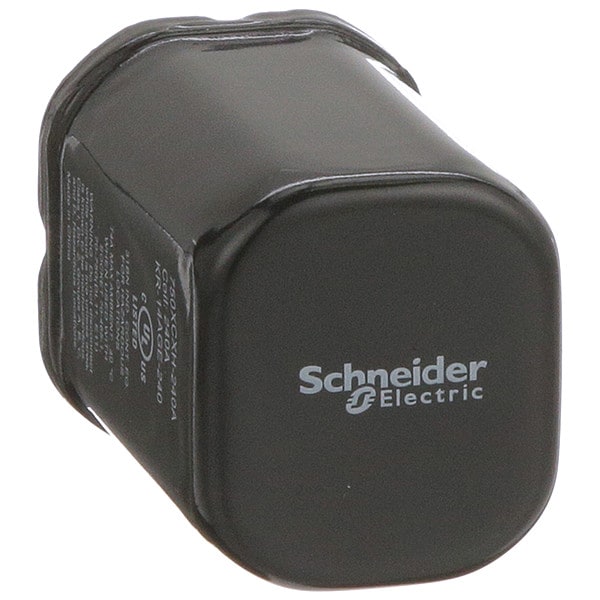

Socket, General Purpose Relay, Octal, 12 A, 11 Pins, Pin

  • Mfr # 750XCXH-240A

  • Zoro # G0671623

product price:  $119.99
/ea
Sold in multiples of 10 for $1,199.90
Free Shipping & Returns

Key Features

Mounting Style
Socket
Electrical Connection
11-Pin Terminal
Base Shape
Octal
Number of Pins
11
Coil Voltage
240V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
750XCXH-240A
Zoro #
G0671623
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.1 in
Overall Depth
2.07 in
Body Width
1.44 in
Body Height
1.62 in
Body Depth
2.07 in
Depth
1.62 in (41.2 mm)
Width
1.44 in (36.5 mm)

Details

Item
Hermetically Sealed Relay
Mounting Style
Socket
Electrical Connection
11-Pin Terminal
Base Shape
Octal
Number of Pins
11
Coil Voltage
240V AC
Current Rating
12 A
Contact Form
3PDT
Contact Rating (AC)
12 A @ 120V, 12 A @ 240V
Contact Rating (DC)
12 A @ 28V
Status Indicator
No Indicator
Socket
Mfr. No. 70-465-1, 70-750E11-1
Power Consumption - Relay
2 VA
Standards
CSA Certified, UL Listed
Contact Material
Silver Alloy
Socket Code
B
Green Environmental Attribute
RoHS 2011/65/EU Compliant
IP Rating
IP67
Power Consumption
1.2 W, 2.75 VA
Dielectric Strength
1,500V AC Between Open Contacts, 1,600V AC Between Coil and Contact, 1,600V AC Between Poles
Maximum Switching Voltage
300V
Minimum Operating Temperature
-40 Degrees F
Sealing
Enclosed
Motor Rated
Yes
Electrical Operating Durability
100,000
Input Voltage
240V AC
Horsepower @ 240V AC
1/2 hp
Weight
4.59 oz
Pin Shape
Round
Minimum Switching Current
100 mA
Mechanical Operating Durability
10,000,000
Horsepower @ 120V AC
1/3 hp
Coil Resistance
7,200 ohm
Response Time
20 msec
Push-To-Test Method
No Button
Series
750H Haz Location Series
Operating Current
12 A at 120V AC (Conforming to UL), 12 A at 240V AC (Conforming to UL), 12 A at 28V DC (Conforming to UL)
Resistance Properties
Shock-Resistant, Vibration-Resistant
Maximum Operating Temperature
131 Degrees F
Power consumption in W
1.2 W DC
Contact Composition
3 NO + 3 NC
Voltage Range
0.85...1.1 Un AC/DC
Shock Resistance
10 gn
Motor Power HP
0.5 hp 240 V AC 50/60 Hz; 0.33 hp 120 V AC 50/60 Hz
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Operating Time
20 ms
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Connections Terminals
octal terminal 11 pins)
Product Certifications
UL; CSA
Vibration Resistance
3 gn 35 to 150 Hz)operating; +/- 1 mm 10 to 35 Hz)operating; 6 gn 35 to 150 Hz)not operating; +/- 1 mm 10 to 35 Hz)not operating
Power consumption in VA
2.75 VA AC

Description

Hermetically Sealed Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form 3PDT, Current Rating 12 A, Electrical Connection 11-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 11, Pin Shape Round, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 12 A @ 120V, 12 A @ 240V, Contact Rating (DC) 12 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.07 in, Body Height 1.62 in
