  13. Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

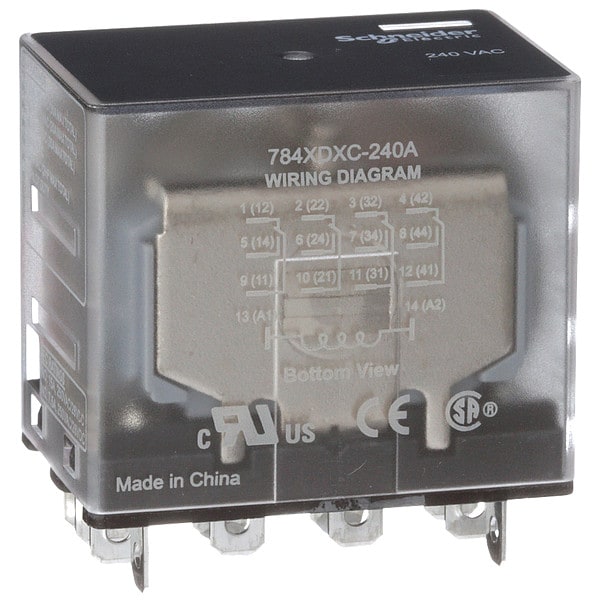

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector 784XDXC-240A - main

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

  • Mfr # 784XDXC-240A

  • Zoro # G2559645

product price: $11.29
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
784XDXC-240A
Zoro #
G2559645
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.64 in
Body Height
1.07 in
Body Width
1.6 in
Overall Depth
1.66 in
Flat Pin Width
0.187 in
Body Depth
1.37 in
Depth
1.07 in (27.3 mm)
Width
1.60 in (40.6 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
240V AC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Socket Code
F
Socket
Mfr. No. 70-784D14-1
Features
Gold Flashed Contacts
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.5 VA
Contact Material
Gold Flashed Silver Alloy
Standards
CE Certified, CSA Certified, UL Listed
Status Indicator
Mechanical Flag
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Resistance Properties
Shock-Resistant, Vibration-Resistant
Horsepower @ 240V AC
3/4 hp
Motor Rated
Yes
Weight
2.5 oz
Response Time
20 msec
Coil Resistance
8,000 ohm
Maximum Switching Voltage
250V AC, 300V DC
IP Rating
IP40
Input Voltage
240V AC
Minimum Operating Temperature
-40 Degrees F
Push-To-Test Method
No Test Button
Minimum Switching Current
10 mA
Horsepower @ 120V AC
1/2 hp
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Series
784 Series
Power Consumption
1.6 W, 2.5 VA
Frequency
50/60 Hz
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
131 Degrees F
For Use With
Automation Panels and Controls
Electrical Operating Durability
100,000
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Voltage Range
0.8...1.1 Un AC/DC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Certifications
UL; CE; CSA
Connections Terminals
Faston terminals
Contact Composition
4 NO + 4 NC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Shock Resistance
15 gn in operation
Power consumption in W
1.6 W DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Product Range
Legacy
Operating Time
20 ms operating; 20 ms tripping
Power consumption in VA
2.5 VA AC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 1.37 in
