  13. Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

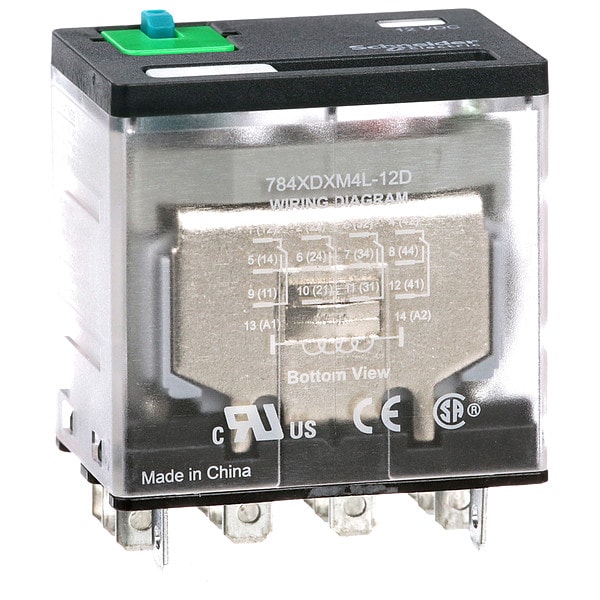

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector 784XDXM4L-12D - main

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

  • Mfr # 784XDXM4L-12D

  • Zoro # G2333816

product price: $25.39
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
784XDXM4L-12D
Zoro #
G2333816
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.78 in
Overall Depth
2.07 in
Body Height
1.07 in
Flat Pin Width
0.187 in
Body Depth
1.54 in
Body Width
1.6 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.3 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
12V DC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Power Consumption - Relay
1.5 W
Socket Code
F
Socket
Mfr. No. 70-784D14-1
Contact Material
Gold Flashed Silver Alloy
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Standards
CE Certified, CSA Certified, UL Listed
Status Indicator
LED and Mechanical Flag
Features
Removable ID Tag
Motor Rated
Yes
For Use With
Automation Panels and Controls
Electrical Operating Durability
100,000
Push-To-Test Method
Lockable Push Test Button
Response Time
20 msec
Mechanical Operating Durability
10,000,000
Resistance Properties
Shock-Resistant, Vibration-Resistant
Frequency
50/60 Hz
Weight
2.82 oz
Minimum Operating Temperature
-40 Degrees F
Series
784 Series
Coil Resistance
76 ohm
IP Rating
IP40
Power Consumption
1.95 W, 2.85 VA
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Horsepower @ 240V AC
3/4 hp
Maximum Operating Temperature
131 Degrees F
Horsepower @ 120V AC
1/2 hp
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Input Voltage
12V DC
Maximum Switching Voltage
250V AC, 300V DC
Minimum Switching Current
10 mA
Operating Time
20 ms operating; 20 ms tripping
Control Type
Lockable test button
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Product Range
Legacy
Product Certifications
UL; CE; CSA
Connections Terminals
Faston terminals
Power consumption in W
1.95 W DC
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Voltage Range
0.8...1.1 Un AC/DC
Shock Resistance
15 gn in operation
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Power consumption in VA
2.85 VA AC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Contact Composition
4 NO + 4 NC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
