  13. Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

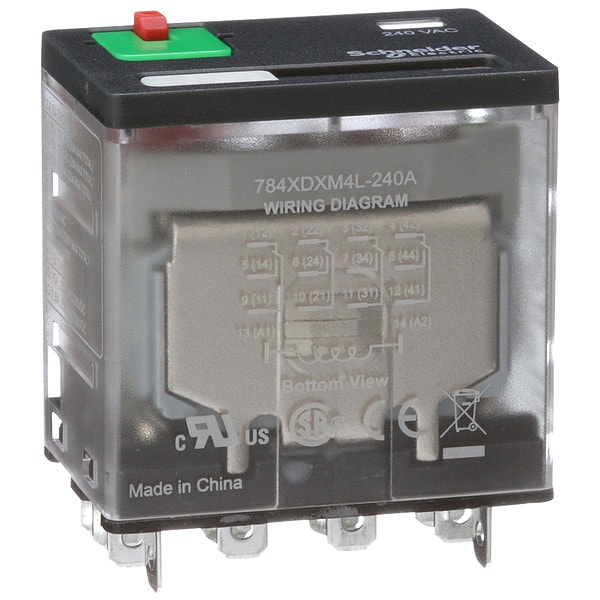

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector 784XDXM4L-240A - main

Socket, General Purpose Relay, Square, 15 A, 14 Pins, Faston Connector

  • Mfr # 784XDXM4L-240A

  • Zoro # G1852295

product price: $15.39
/ea

Key Features

Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
784XDXM4L-240A
Zoro #
G1852295
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.78 in
Flat Pin Width
0.187 in
Overall Depth
2.07 in
Body Width
1.6 in
Body Depth
1.54 in
Body Height
1.07 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.3 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
14
Coil Voltage
240V AC
Current Rating
15 A
Contact Form
4PDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Standards
CE Certified, CSA Certified, UL Listed
Status Indicator
LED and Mechanical Flag
Contact Material
Gold Flashed Silver Alloy
Socket
Mfr. No. 70-784D14-1
Features
Removable ID Tag
Power Consumption - Relay
1.5 VA
Socket Code
F
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Weight
2.82 oz
Frequency
50/60 Hz
Response Time
20 msec
Maximum Operating Temperature
131 Degrees F
Push-To-Test Method
Lockable Push Test Button
Minimum Operating Temperature
-40 Degrees F
Maximum Switching Voltage
250V AC, 300V DC
For Use With
Automation Panels and Controls
IP Rating
IP40
Minimum Switching Current
10 mA
Input Voltage
240V AC
Power Consumption
1.95 W, 2.85 VA
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Series
784 Series
Resistance Properties
Shock-Resistant, Vibration-Resistant
Motor Rated
Yes
Horsepower @ 240V AC
3/4 hp
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Coil Resistance
8,000 ohm
Horsepower @ 120V AC
1/2 hp
Product Range
Legacy
Power consumption in W
1.95 W DC
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Voltage Range
0.8...1.1 Un AC/DC
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Power consumption in VA
2.85 VA AC
Shock Resistance
15 gn in operation
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Connections Terminals
Faston terminals
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Product Certifications
UL; CE; CSA
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Operating Time
20 ms operating; 20 ms tripping
Control Type
Lockable test button
Contact Composition
4 NO + 4 NC

Description

General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 4PDT, Current Rating 15 A, Electrical Connection Faston Terminal, Flat Pin Width 0.187 in, Number of Pins 14, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V, Contact Rating (DC) 15 A @ 28V (NO), 7.55 A @ 28V (NC), Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 3/4 hp, Mounting Style Socket, Push-To-Test Method Lockable
