  13. Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

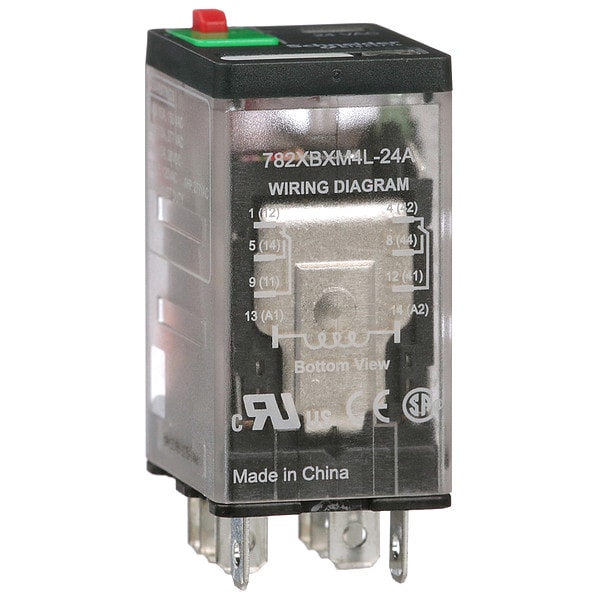

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector 782XBXM4L-24A - main

CAD Viewer & Download Files

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

  • Mfr # 782XBXM4L-24A

  • Zoro # G1643397

CAD Available
product price: $13.99
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
782XBXM4L-24A
Zoro #
G1643397
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.78 in
Overall Depth
2.1 in
Body Height
1.07 in
Body Width
0.83 in
Body Depth
1.54 in
Flat Pin Width
0.187 in
Depth
1.07 in (27.3 mm)
Width
0.83 in (21 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V AC
Current Rating
15 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Standards
CE Certified, CSA Certified, UL Listed
Socket
Mfr. No. 70-459-1, 70-782D8-1A
Features
Gold Flashed Contacts, Removable ID Tag
Status Indicator
LED and Mechanical Flag
Contact Material
Gold Flashed Silver Alloy
Socket Code
D
Power Consumption - Relay
1.2 VA
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Horsepower @ 120V AC
1/2 hp
Coil Resistance
177 ohm
Minimum Switching Current
10 mA
Maximum Switching Voltage
250V AC, 300V DC
Power Consumption
1.15 W, 1.4 VA
Motor Rated
Yes
Input Voltage
24V AC
Push-To-Test Method
Lockable Push Test Button
Minimum Operating Temperature
-40 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Response Time
20 msec
Weight
1.27 oz
IP Rating
IP40
Resistance Properties
Shock-Resistant, Vibration-Resistant
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Horsepower @ 240V AC
1 hp
Maximum Operating Temperature
131 Degrees F
For Use With
Automation Panels and Controls
Electrical Operating Durability
100,000
Series
782 Series
Mechanical Operating Durability
10,000,000
Power consumption in W
1.15 W DC
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Connections Terminals
Faston terminals
Product Range
Legacy
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Power consumption in VA
1.4 VA AC
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Operating Time
20 ms operating; 20 ms tripping
Voltage Range
0.8...1.1 Un AC/DC
Contact Composition
2 NO + 2 NC
Product Certifications
UL; CE; CSA
Shock Resistance
15 gn in operation
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Control Type
Lockable test button
CAD Available
Yes

Description

The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VAC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
