  13. Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

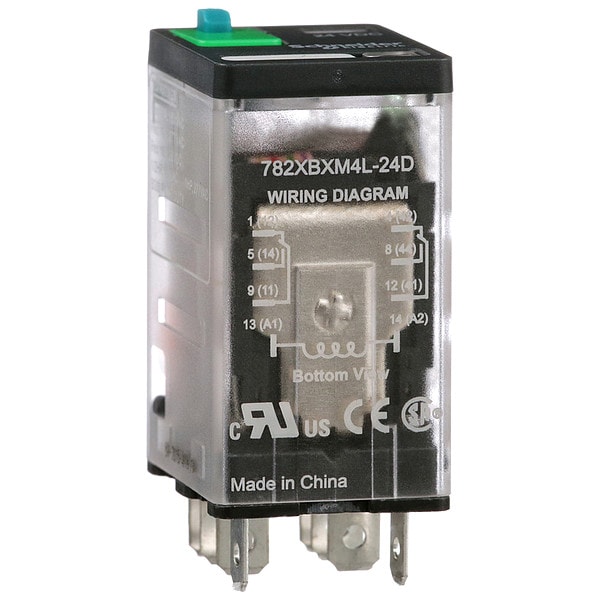

Schneider Electric Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector 782XBXM4L-24D - main

CAD Viewer & Download Files

Socket, General Purpose Relay, Square, 15 A, 8 Pins, Faston Connector

  • Mfr # 782XBXM4L-24D

  • Zoro # G1431105

CAD Available
product price: $15.65
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
782XBXM4L-24D
Zoro #
G1431105
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
1.78 in
Flat Pin Width
0.187 in
Body Depth
1.54 in
Body Width
0.83 in
Body Height
1.07 in
Overall Depth
2.1 in
Width
0.83 in (21 mm)
Depth
1.07 in (27.3 mm)

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Faston Connector
Base Shape
Square
Number of Pins
8
Coil Voltage
24V DC
Current Rating
15 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 151/277V, 15 A @ 120 to 277/120/150/250V, 7.55 A @ 250V
Contact Rating (DC)
15 A @ 28V (NO), 7.55 A @ 28V (NC)
Features
Gold Flashed Contacts, Removable ID Tag
Socket Code
J
Contact Material
Gold Flashed Silver Alloy
Socket
Mfr. No. 70-459-1, 70-782D8-1A
Standards
CE Certified, CSA Certified, UL Listed
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Power Consumption - Relay
1.2 W
Status Indicator
LED and Mechanical Flag
For Use With
Automation Panels and Controls
Horsepower @ 120V AC
1/2 hp
Power Consumption
1.15 W, 1.4 VA
Motor Rated
Yes
Electrical Operating Durability
100,000
Weight
1.27 oz
Coil Resistance
640 ohm
Maximum Operating Temperature
131 Degrees F
Dielectric Strength
1,500V AC Between Contacts, 2,000V AC Between Coil and Contact, 2,000V AC Between Poles
Series
782 Series
Resistance Properties
Shock-Resistant, Vibration-Resistant
Minimum Operating Temperature
-40 Degrees F
Response Time
20 msec
Input Voltage
24V DC
Push-To-Test Method
Lockable Push Test Button
Horsepower @ 240V AC
1 hp
IP Rating
IP40
Minimum Switching Current
10 mA
Operating Current
10 A at 151/277V, 15 A at 120 to 277V, 15 A at 120/150V, 15 A at 250V, 15 A at 28V, 15 A at 28V (NO), 7.55 A at 250V (NC), 7.55 A at 28V (NC)
Maximum Switching Voltage
250V AC, 300V DC
Mechanical Operating Durability
10,000,000
Ambient Air Temperature for Storage
-40 to 185°F (-40 to 85°C)
Motor Power HP
0.5 hp 120 V AC 50/60 Hz; 1 hp 277 V AC 50/60 Hz
Control Type
Lockable test button
Operating Time
20 ms operating; 20 ms tripping
Contact Composition
2 NO + 2 NC
Connections Terminals
Faston terminals
Ambient Air Temperature for Operation
-40 to 131°F (-40 to 55°C)
Product Range
Legacy
Power consumption in VA
1.4 VA AC
Shock Resistance
15 gn in operation
Drop-out Voltage Threshold
>= 0.15 Uc AC; >= 0.1 Uc DC
Power consumption in W
1.15 W DC
Voltage Range
0.8...1.1 Un AC/DC
Vibration Resistance
+/- 1 mm 10 to 35 Hz); 3 gn 35 to 150 Hz)
Product Certifications
UL; CE; CSA
CAD Available
Yes

Description

The SE Relays 782 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
