  11. Soft Start, 208-600VAC, 110V Ctrl, 320A

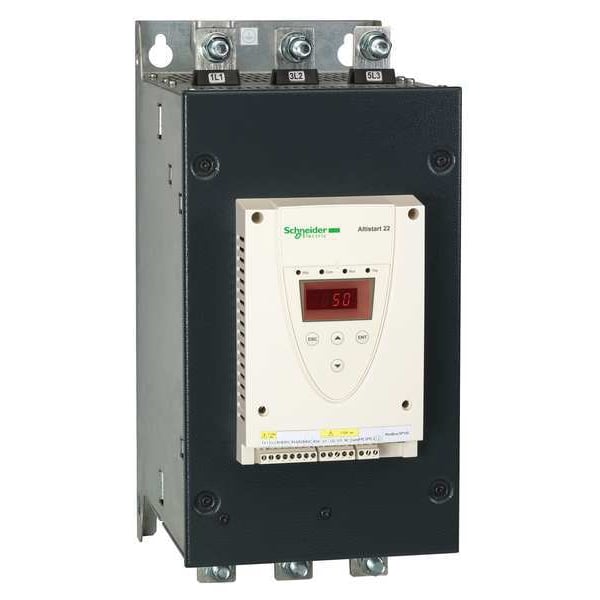

Schneider Electric Soft Start, 208-600VAC, 110V Ctrl, 320A ATS22C32S6U - main

Soft Start, 208-600VAC, 110V Ctrl, 320A

  • Mfr # ATS22C32S6U

  • Zoro # G3929195

product price: $4,319.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
208 to 600V AC
Output Current
320 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ATS22C32S6U
Zoro #
G3929195
UPC #
785901695370
Country of Origin
China

Dimensions

Width
8.1 in
Depth
11.8 in
Height
15.6 in
Overall Depth
11.77 in
Overall Width
8.11 in
Overall Height
16.73 in

Details

Input Voltage
208 to 600V AC
Output Current
320 A
Frequency
50/60 Hz
Phase
Three
Output Voltage
208 to 600V AC
Control Voltage
110V AC
With Bypass / No Bypass
With Bypass
Enclosure Rating
IP00, NEMA 1
Display
4 7-Segment Display, 4 LED (Ready, Communication, Run and Trip)
Ramp Time
1 to 60 sec.
Stop Time
1 to 60 sec
Communication Port
Modbus
Start Type
Torque Control Start
Inputs/Outputs
3 Logic Inputs, 1 PTC Probe Analog Input, 2 (NC/NO) Relay Outputs
Standards
C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
Item
Soft Start
Application
Fans, Pumps
HP @ 3 Phase - 208V
100 hp
IP Rating
00
HP @ 3 Phase - 240V
125 hp
HP @ 3 Phase - 575V
300 hp
HP @ 3 Phase - 480V
250
HP @ 3 Phase - 460V
250
HP @ 3 Phase - 230V
125
Protects
Phase Failure Line, Thermal Protection Motor, Thermal Protection Starter
Output Power
100 hp @ 3 Phase, 208V AC, 125 hp @ 3 Phase, 230V AC, 250 hp @ 3 Phase, 460V AC, 300 hp @ 3 Phase, 575V AC
Type
Integrated Bypass

Description

Soft Start, Input Voltage 208 to 600V AC, Output Current 320 A, Output Voltage 208 to 600V AC, 100 hp @ 3 Phase, 208V AC, 125 hp @ 3 Phase, 230V AC, 250 hp @ 3 Phase, 460V AC, 300 hp @ 3 Phase, 575V AC, Control Voltage 110V AC, IP00, NEMA 1
