Shop SCHNEIDER ELECTRIC

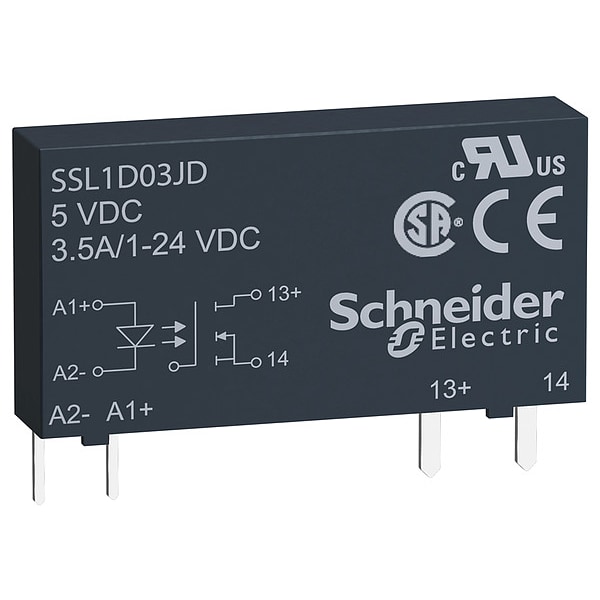

Solid State Relay, 1 Phase, Pin, Socket, MOSFET

  • Mfr # SSL1D03JD
  • Zoro # G0745634
product price:
$
24.19
/ea

Key Features

Electrical Phase
1
Electrical Connection
Pin
Mounting Style
Socket
Switch Component Type
MOSFET
Max. Output Amps Without Heat Sink
3.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SSL1D03JD
Zoro #
G0745634
UPC #
785901968283
Country of Origin
Mexico

Dimensions

Overall Height - Relay
0.74 in
Body Height
1.1 in
Overall Depth
0.74 in
Body Depth
0.59 in
Body Width
0.2 in
Depth
15 mm
Width
5 mm
Height
28 mm

Details

Item
Solid State Relay
Electrical Phase
1
Electrical Connection
Pin
Mounting Style
Socket
Switch Component Type
MOSFET
Max. Output Amps Without Heat Sink
3.5 A
Input Voltage
3 to 12V DC
Case Color
Black
Contact Form - Relay
SPST-NO
Standards
CE Certified, CSA Certified, UL Listed
Includes
LED Indicator for Easy Identification of Control Status
Current Rating
3.5 A
Maximum Operating Temperature
176 Degrees F
Response Time
0.12 msec
Weight
0.16 oz
Minimum Switching Voltage
3V DC
Maximum Switching Voltage
1V DC
Minimum Operating Temperature
-4 Degrees F
Load Current
0.001-3.5 A
Device Short Name
SSL
Marking
CE
Output switching mode
DC switching
Product Certifications
UL || CSA
Input Impedance
500 Ohm
Flame Retardance
V0 conforming to UL 94
Surge Current
9 A 10 ms
Ambient Air Temperature For Operation
-20-80°C
Input Current Limits
10-10 mA
Capacitance Unbalance
1.5 pF input/output
Ambient Air Temperature For Storage
-20-85°C
Pollution Degree
2
Maximum Leakage Current
0.001 mA off-state
Dielectric Strength
2500 V for input/output
Overvoltage Category
III
Maximum Operating Frequency
500 Hz
Absolute Maximum Voltage
30 V DC
Solid State Output Type
Mosfet output || DC switching
Maximum Voltage Drop
<0.5 V on-state
Maximum Output Current with Heat Sink
3.5 A
Output Voltage Range
1 to 24V DC
Contact Form
SPST-NO
Coil Voltage
3 to 12V DC

Description

Solid State Relay, Coil Voltage 3 to 12V DC, Contact Form SPST-NO, Current Rating 3.5 A, Electrical Connection Pins, Mounting Style Socket, Body Depth 0.59 in, Body Height 1.1 in, Body Width 0.2 in, Input Voltage 3 to 12V DC, Maximum Operating Temperature 176 Degrees F, Maximum Switching Voltage 1V DC, Minimum Operating Temperature -4 Degrees F, Minimum Switching Voltage 3V DC
