  13. Solid State Relay, 3 Phase, Screw Clamp, Panel, SCR

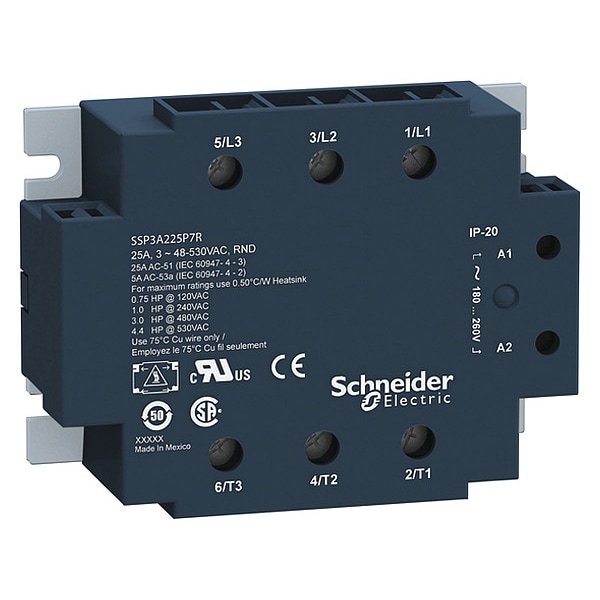

Schneider Electric Solid State Relay, 3 Phase, Screw Clamp, Panel, SCR SSP3A225BDR - main

Solid State Relay, 3 Phase, Screw Clamp, Panel, SCR

  • Mfr # SSP3A225BDR

  • Zoro # G3465428

product price: $192.99
/ea
Free Shipping & Returns

Key Features

Electrical Phase
3
Electrical Connection
Screw Clamp
Mounting Style
Panel
Switch Component Type
SCR
Heat Sink
Not Included
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSP3A225BDR
Zoro #
G3465428
UPC #
785901978060
Country of Origin
Mexico

Dimensions

Overall Height - Relay
3.14 in
Body Height
3.13 in
Body Depth
1.39 in
Overall Depth
1.39 in
Body Width
3.98 in
Depth
35.4 mm
Height
79.7 mm
Width
101.3 mm

Details

Item
Solid State Relay
Electrical Phase
3
Electrical Connection
Screw Clamp
Mounting Style
Panel
Switch Component Type
SCR
Heat Sink
Not Included
Input Voltage
4 to 32V DC
Finger Safe
Yes
Standards
CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed
IP Rating
IP20
Dielectric Strength
4,000V AC
Maximum Output Current without Heat Sink
Not Recommended
Power Factor
0.5
Input Current
24 to 35 mA
Maximum Operating Temperature
176 Degrees F
Status Indicator
Green LED Indicator
Insulation Resistance
1,000 megaohm
Horsepower @ 240V AC
1 hp
Response Time
0.1 msec
Minimum Operating Temperature
-40 Degrees F
Minimum Switching Voltage
4V DC
Weight
8.48 oz
Maximum Capacitance
8 pF
Output Switching Mode
Random/Instantaneous
Current Type
DC
Output Voltage Range
48 to 530V AC
Maximum Output Current with Heat Sink
25 A
Maximum Switching Voltage
1V DC
Drop Out Voltage
1.35V DC
Series
Harmony(TM) SSP Series
Flame Retardance
V0 conforming to UL 94
Maximum Voltage Drop
<1.35 V on-state
Ambient Air Temperature For Storage
-40-125°C
Tightening Torque
0.9 to 1.1 N.m for input || 1.7 to 2.2 N.m for output
Marking
CE
Local Signalling
LED, green input
Maximum Leakage Current
3 mA off-state
Thermal Resitance
0.24°C/W
Maximum Horse Power Rating
0.75 hp 40°C 120 V AC || 1 hp 40°C 240 V AC || 3 hp 40°C 480 V AC || 4.4 hp 40°C 530 V AC
Motor Power Kw
0.56 kW 40-40°C 120 V AC || 0.74 kW 40-40°C 240 V AC || 2.22 kW 40-40°C 480 V AC || 3.24 kW 40-40°C 530 V AC
Capacitance Unbalance
8 pF for input/output
Dv/Dt
500 V/µs off-state at maximum voltage
Control type
without test button
Connections - Terminals
screw terminals 1 x 0.2 to 1 x 2.5 mm², AWG 24 to AWG 14) input || screw terminals 1 x 1.5 to 1 x 10 mm², AWG 16 to AWG 8) output
Solid State Output Type
random voltage switching
Load Current
0.1-25 A
Product Certifications
CSA || UL
Cos Phi
0.5-0.5 (with maximum load)
Absolute Maximum Voltage
1200 V
Device Short Name
SSP
Ambient Air Temperature For Operation
-40-80°C
Pollution Degree
2
Maximum I²T For Fusing
380 A².s for 10 ms at 50 Hz || 370 A².s for 8.3 ms at 60 Hz
Surge Current
275 A 20 ms || 300 A 16.6 ms || 85 A 1 s
Overvoltage Category
III

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 24 to 35 mA, Input Voltage 4 to 32V DC, Maximum Output Current with Heat Sink 25 A, Maximum Output Current without Heat Sink Not Recommended, Output Switching Mode Random/Instantaneous, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, IEC 60950-1, IEC 61000, IEC 62314, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Three, Finger Safe Yes
