  13. Solid State Relay, 3 Phase, screw, symmetrical DIN rail

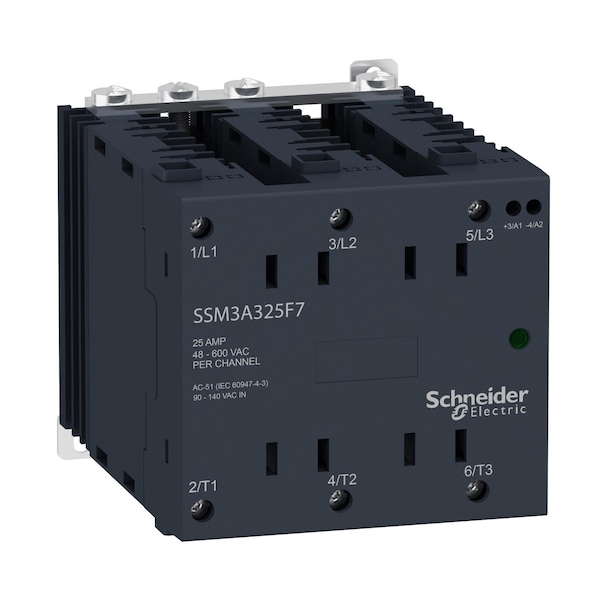

Schneider Electric Solid State Relay, 3 Phase, screw, symmetrical DIN rail SSM3A325BD - main

Solid State Relay, 3 Phase, screw, symmetrical DIN rail

  • Mfr # SSM3A325BD

  • Zoro # G5956585

product price: $150.99
/ea
Free Shipping & Returns

Key Features

Electrical Phase
3
Electrical Connection
screw
Mounting Style
symmetrical DIN rail
Standards
CSA C22.2 No 14 || IEC 60950-1 || UL 508
Input Voltage
4 to 32V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SSM3A325BD
Zoro #
G5956585
UPC #
-
Country of Origin
Mexico

Details

Item
Solid State Relay
Electrical Phase
3
Electrical Connection
screw
Mounting Style
symmetrical DIN rail
Standards
CSA C22.2 No 14 || IEC 60950-1 || UL 508
Input Voltage
4 to 32V DC
Dv/Dt
500 V/µs off-state at maximum voltage
Maximum Voltage Drop
<1.35 V on-state
Switching Voltage
4 V DC turn-on || 1 V DC turn-off
Absolute Maximum Voltage
1100 V
Insulation Resistance
1000 MOhm
Surge Current
286 A 20 ms 50 Hz || 300 A 16.6 ms 60 Hz
Number Of Channels
3
Ambient Air Temperature For Storage
-40-100°C
Ambient Air Temperature For Operation
-20-80°C
Connections - Terminals
screw terminals 0.2 to 1.3 mm², AWG 24 to AWG 16) input || screw terminals 1.3 to 5.3 mm², AWG 16 to AWG 10) output
Marking
EAC || CSA || UL || CE
Load Current
0.1-25 A
Input Current Limits
22-28 mA
Ip Degree Of Protection
IP20
Pollution Degree
2
Solid State Output Type
zero voltage switching
Product Certifications
CSA || UL || EAC
Output switching mode
zero voltage switching
Cos Phi
0.5-0.5 (with maximum load)
Maximum Horse Power Rating
1 hp 40°C 240 V AC || 2 hp 40°C 380 V AC || 3 hp 40°C 480 V AC
Maximum I²T For Fusing
410 A².s for 10 ms at 50 Hz || 374 A².s for 8.3 ms at 60 Hz
Local Signalling
for input status LED (green)
Overvoltage Category
III
Response Time
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Tightening Torque
0.6 to 0.7 N.m for input || 1.36 to 1.7 N.m for output
Dielectric Strength
4 kV AC for input/output || 4 kV AC for input or output to case
Capacitance Unbalance
8 pF for input/output
Maximum Leakage Current
0.25 mA off-state
Device Short Name
SSM3
Range of Product
Harmony Solid State Relays
Output Voltage Range
48 to 600V AC
Maximum Output Current with Heat Sink
25 A

Description

This SSM three-phase solid state relay is part of the range of solid state modular relays Harmony. It features 25A power rating and 1NO contact. It features a control circuit voltage of 4V to 32V DC and an output voltage (load output) of 48V to 660V AC. This relay is maintenance free, fully electronic with unlimited life span. It features a control input voltage LED indicator in green. Its protection index is IP20. It weighs 740g and its dimensions are, 90mm wide, 97mm high, 123.8mm deep. 0 It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. 0 It can be mounted on 35mm DIN rail. 0
