- Item

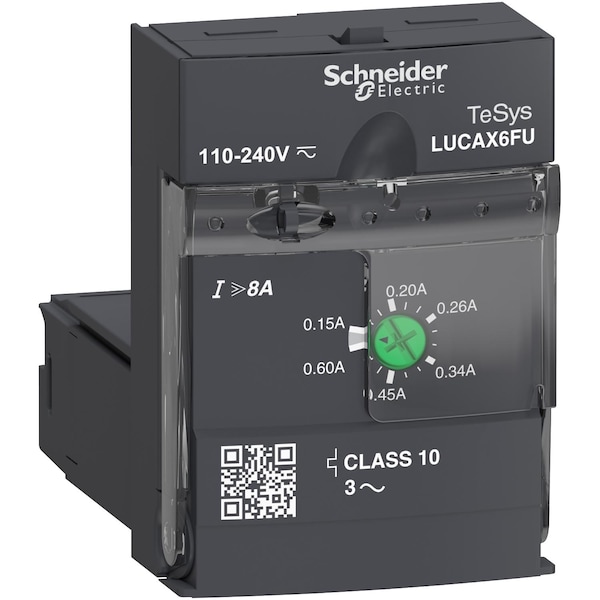

- Control Unit
- Coil Voltage
- 110V-240V AC, 110V-220V DC
- Standards
- EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
- Features
- Protection against overload and short-circuit; Protection against phase failure and phase imbalance; Manual reset; Earth fault protection; Free of Halogen, Mercury & Pvc Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
- Weight
- 0.135 kg
- Operating Voltage
- 690V AC
- Device Short Name
- LUCA
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Range of Product
- TeSys Ultra
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85°C
- Operating Time
- 35 ms opening with LUB12 control circuit, 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 50 ms closing with LUB12 control circuit, 50 ms closing with LUB32 control circuit, 50 ms closing with LUB38 control circuit
- Utilisation Category
- AC-43, AC-41, AC-44
- Product Name
- TeSys Ultra
- Compatibility Code
- LUCA
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
- Thermal Protection Adjustment Range
- 0.15-0.6 A
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
- Operating Altitude
- 6561.68 ft (2000 m)
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Fixing Mode
- plug-in (front face)
- Typical Current Consumption
280 mA 110...240 V AC I maximum while closing with LUB12, 280 mA 110...240 V AC I maximum while closing with LUB32, 280 mA 110...240 V AC I maximum while closing with LUB38, 280 mA 110...220 V DC I maximum while closing with LUB12, 280 mA 110...220 V DC I maximum while closing with LUB32, 280 mA 110...220 V DC I maximum while closing with LUB38, 35 mA 110...240 V AC I rms sealed with LUB12, 25 mA 110...240 V AC I rms sealed with LUB32, 25 mA 110...240 V AC I rms sealed with LUB38, 35 mA 110...220 V DC I rms sealed with LUB12, 25 mA 110...220 V DC I rms sealed with LUB32, 25 mA 110...220 V DC I rms sealed with LUB38
- Immunity To Microbreaks
- 3 ms
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
- Thermal Overload Class
- class 10 40-60 Hz -25-70°C IEC 60947-6-2, class 10 40-60 Hz -25-70°C UL 508
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Protective Treatment
- TH IEC 60068
- Control Circuit Voltage Limits
- 88...264 V AC 110...240 V in operation, 88...242 V DC 110...220 V in operation, 55 V AC 110...240 V drop-out, 55 V DC 110...220 V drop-out
- Fire Resistance
- 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12
- Heat Dissipation
- 2-2 W control circuit with LUB12, 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Safe Separation Of Circuit
- 401 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Control Circuit Voltage
- 110...240 V AC, 110...220 V DC
- Compatible Manufacturer Model Number
- LUB12, LUB32, LUB38, LUB120, LUB320, LUB380, LU2B12FU, LU2B32FU, LU2B38FU
- Maximum Overload Relay Current Setting
- 0.6 A
- Motor Power KW
- 0.09 kW 400 to 440 V AC 50/60 Hz
- Phase
- Three
- Rated Insulation Voltage
- 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Maximum Operating Temperature
- 70 Degrees C
- Frequency
- 40 to 60 Hz
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Minimum Operating Temperature
- -25 Degrees C
