- Item

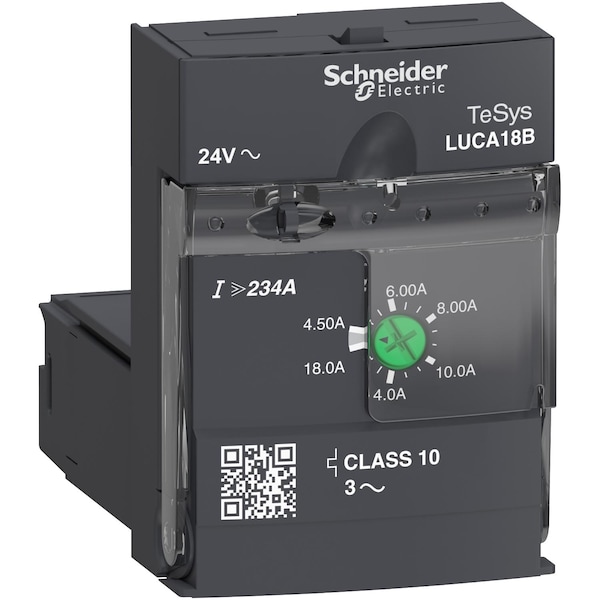

- Motor Starter Control Unit
- Coil Voltage
- 24V AC
- Standards
- EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier
- Features
- Earth fault protection; Protection against overload and short-circuit; Manual reset; Protection against phase failure and phase imbalance; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
- Operating Voltage
- 690V AC
- Weight
- 0.135 kg
- Protective Treatment
- TH IEC 60068
- Thermal Protection Adjustment Range
- 4.5-18 A
- Operating Altitude
- 6561.68 ft (2000 m)
- Ambient Air Temperature For Storage
- -40-85°C
- Non-Dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-2, 2 kV common mode IEC 60947-6-2
- Compatibility Code
- LUCA
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2
- Fire Resistance
- 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12
- Vibration Resistance
- 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6
- Operating Time
- 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit
- Heat Dissipation
- 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38
- Utilisation Category
- AC-44, AC-43, AC-41
- Tripping Threshold
- 14.2 x Ir +/- 20 %
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Thermal Overload Class
- class 10 40-60 Hz -25-70°C IEC 60947-6-2, class 10 40-60 Hz -25-70°C UL 508
- Typical Current Consumption
- 220 mA 24 V AC I maximum while closing with LUB32, 220 mA 24 V AC I maximum while closing with LUB38, 90 mA 24 V AC I rms sealed with LUB32, 90 mA 24 V AC I rms sealed with LUB38
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Immunity To Microbreaks
- 3 ms
- Range of Product
- TeSys Ultra
- Product Name
- TeSys Ultra
- Shock Resistance
- 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27
- Device Short Name
- LUCA
- Control Circuit Voltage Limits
- 20...26.5 V AC 24 V in operation, 14.5 V AC 24 V drop-out
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Fixing Mode
- plug-in (front face)
- Phase Failure Sensitivity
- Yes
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
- Motor Power KW
- 7.5 kW 400 to 440 V AC 50/60 Hz; 9 kW 500 V AC 50/60 Hz; 15 kW 690 V AC 50/60 Hz
- IP Degree Of Protection
- IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
- Rated Insulation Voltage
- 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
- Main Function Available
- Earth fault protection; Protection against overload and short-circuit; Manual reset; Protection against phase failure and phase imbalance
- Control Circuit Voltage
- 24 V AC
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-6-2
- Compatible Manufacturer Model Number
- LUB32, LUB38, LUB320, LUB380, LU2B32B
- Maximum Overload Relay Current Setting
- 18A
- Maximum Operating Temperature
- 70 Degrees C
- Reset Type
- Manual
- Frequency
- 40 to 60 Hz
- Phase
- Three
- Minimum Operating Temperature
- -25 Degrees C
