  13. Surface, Open Power Relay, 40 A, 4 Pins, Screw

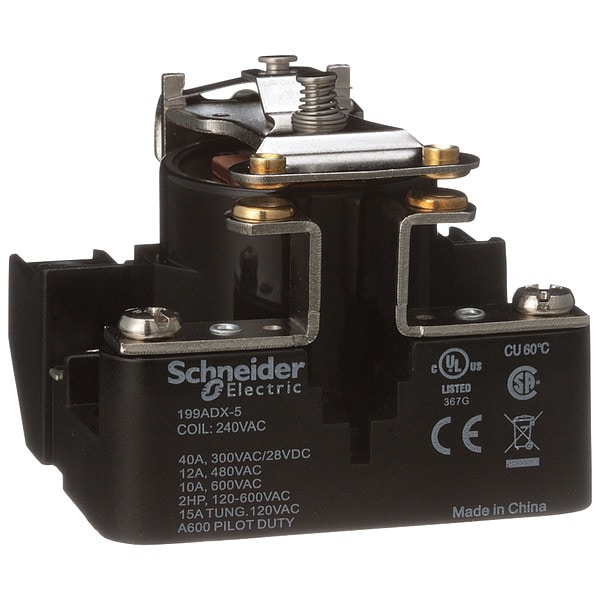

Schneider Electric Surface, Open Power Relay, 40 A, 4 Pins, Screw 199ADX-5 - main

Surface, Open Power Relay, 40 A, 4 Pins, Screw

  • Mfr # 199ADX-5

  • Zoro # G2670841

product price: $32.15
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
240V AC
Current Rating
40 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199ADX-5
Zoro #
G2670841
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.18 in
Dimensions
2.18"H, 2.50"W, 2.43"D
Body Width
1.37 in
Body Depth
2.12 in
Body Height
2.67 in
Overall Depth
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
240V AC
Current Rating
40 A
Contact Form
SPST-NO
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V
Contact Rating (DC)
10 A @ 600V, 12 A @ 480V, 40 A @ 28V
HP @ 240V
2
Number of Poles
1
Standards
CE Certified, CSA Certified, UL Listed
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Hz
50/60
Features
Riveted Construction
Coil Rating
10.0VA, 4.0W
HP @ 120V
2
Power Consumption - Relay
10.0 VA
Hz - Electrical
50/60 Hz
Contact Material
Silver Alloy
Weight
0.6
Power Consumption
4 W, 10 VA
Compatible with Manufacturer Model Number
50-1289-P
Electrical Operating Durability
50,000
Motor Rated
Yes
Operating Current
10 A at 600V DC (Resistive Load), 12 A at 480V DC (Resistive Load), 15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load)
Maximum Switching Voltage
600V AC
Horsepower @ 120V AC
2 hp
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Minimum Operating Temperature
-67 Degrees F
Coil Resistance
1,200 ohm
Series
199 Power Series
Input Voltage
240V AC
Frequency
50/60 Hz
Minimum Switching Current
1,000 mA
Response Time
30 msec
Maximum Operating Temperature
131 Degrees F
Horsepower @ 240V AC
2 hp
Sealing
Open
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Power consumption in VA
10 VA AC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Cover Type
Open cover
Contact Operation
Double action
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Wire Range
AWG 14
Switch Function
SPST-NO-DM
Contact Composition
1 NO
Power consumption in W
4 W DC
Product Certifications
UL Listed; CSA; CE
Voltage Range
0.85...1.1 Un AC/DC
Type
Power, Open Style

Description

Open Power Relay, Coil Voltage 240V AC, Contact Form SPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 4, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, Contact Rating (DC) 10 A @ 600V, 12 A @ 480V, 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.12 in, Body Height 2.67 in, Body Width 1.37 in, Coil Resistance 1,200 ohm, Compatible with Grainger Part Number 6CVA2
