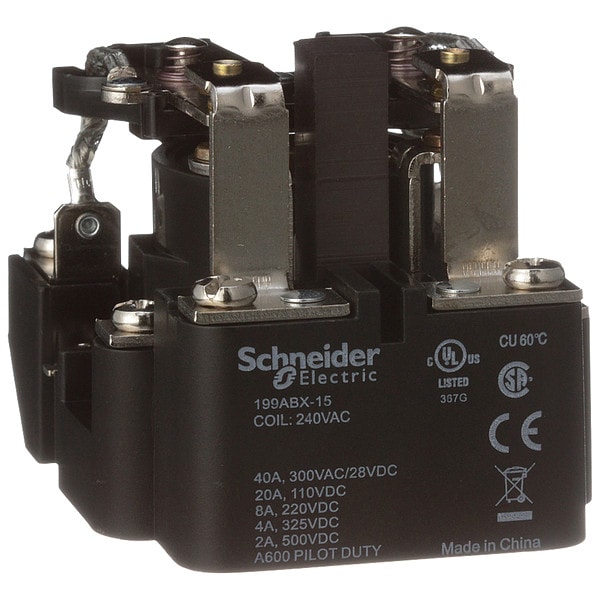

Schneider Electric Surface, Open Power Relay, Octal, 40 A, 8, Screw 199ABX-15 - main

Surface, Open Power Relay, Octal, 40 A, 8, Screw

  • Mfr # 199ABX-15

  • Zoro # G1609361

product price: $46.15
/ea

Key Features

Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199ABX-15
Zoro #
G1609361
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.31 in
Dimensions
2.31"H, 2.50"W, 3.12"D
Body Height
3.12 in
Overall Depth
2.31 in
Body Depth
2.53 in
Body Width
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Octal
Number of Pins
8
Coil Voltage
240V AC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
40 A @ 300V
Contact Rating (DC)
2 A @ 500V, 20 A @ 120V, 4 A @ 325V, 40 A @ 8V, 8 A @ 240V
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Features
Magnetic Blowout, Riveted Construction
Power Consumption - Relay
10.0 VA
Coil Rating
10.0VA, 4.0W
Standards
CE Certified, CSA Certified, UL Listed
Hz - Electrical
50/60 Hz
Number of Poles
2
Hz
50/60
Contact Material
Silver Alloy
Minimum Switching Current
1,000 mA
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Coil Resistance
1,200 ohm
Series
199 Power Series
Maximum Operating Temperature
131 Degrees F
Power Consumption
4 W, 10 VA
Input Voltage
240V AC
Weight
0.6
Maximum Switching Voltage
600V AC
Motor Rated
Yes
Sealing
Open
Response Time
30 msec
Minimum Operating Temperature
-67 Degrees F
Electrical Operating Durability
50,000
Frequency
50/60 Hz
Compatible with Manufacturer Model Number
50-1289-P
Horsepower @ 120V AC
2 hp
Horsepower @ 240V AC
2 hp
Operating Current
2 A at 500V DC (Resistive Load), 20 A at 110V DC (Resistive Load), 4 A at 325V DC (Resistive Load), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 8 A at 220V DC (Resistive Load)
Compatible Manufacturer Part Number
50-1289-P
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Power consumption in VA
10 VA AC
Voltage Range
0.85...1.1 Un AC/DC
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Power consumption in W
4 W DC
Contact Composition
2 C/O
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Wire Range
AWG 14
Product Certifications
UL Listed; CSA; CE
Contact Blow-out Type
Magnetic
Cover Type
Open cover
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Type
Power, Open Style

Description

Open Power Relay, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 2 A @ 500V, 20 A @ 120V, 4 A @ 325V, 40 A @ 8V, 8 A @ 240V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.53 in, Body Height 3.12 in, Body Width 2.5 in, Coil Resistance 1,200 ohm

Restrictions

Hazardous material
