  7. Surface, Open Power Relay, Octal, 40 A, 8, Screw Terminal

This item is Discontinued.

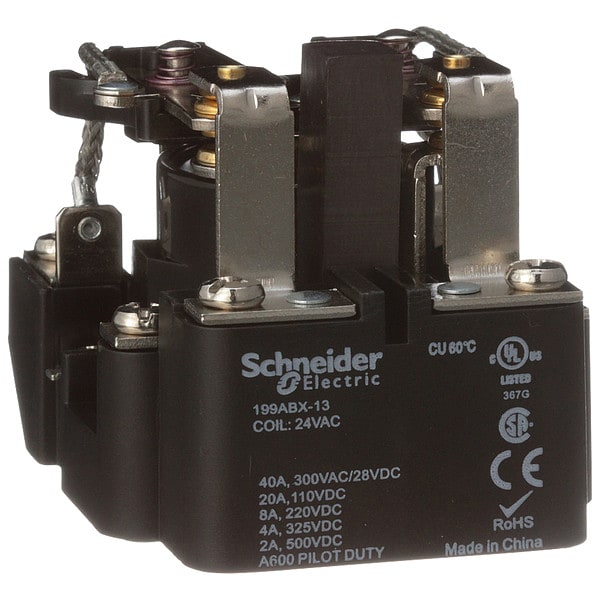

Schneider Electric Surface, Open Power Relay, Octal, 40 A, 8, Screw Terminal 199ABX-13

Surface, Open Power Relay, Octal, 40 A, 8, Screw Terminal (Discontinued)

  • Mfr # 199ABX-13
  • Zoro # G1216887
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
199ABX-13
Zoro #
G1216887
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.31"H, 2.50"W, 3.12"D
Overall Height - Relay
2.31 in
Body Width
2.5 in
Overall Depth
2.31 in
Body Height
3.13 in
Body Depth
3.13 in
Body Depth - Relay
3.12 in
Body Height - Relay
2.31 in
Body Width - Relay
2.5 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw Terminal
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V AC
Current Rating
40 A
Contact Form
DPDT
Contact Rating (AC)
40 A @ 300V
Contact Rating (DC)
2 A @ 500V, 20 A @ 120V, 4 A @ 325V, 40 A @ 8V, 8 A @ 240V
Contact Material
Silver Alloy
Mounting
Panel
Coil Rating
10.0VA, 4.0W
Pins
8
Coil Volts
24V AC
AC Contact Rating - Relay
40A @ 300V
Item - Relay
Open Power Relay
Features
Magnetic Blowout, Riveted Construction
Number of Poles
2
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Electrical Connection - Power Relay
Screw
Hz - Electrical
50/60 Hz
Contact Form - Relay
DPDT
Hz
50/60
HP @ 120V
2
Number of Pins - Relay
8
Mounting - Relay
Surface
Power Consumption - Relay
10.0 VA
Standards
CE Certified, CSA Certified, UL Listed
HP @ 240V
2
DC Contact Rating - Relay
40A @ 28V
Maximum Switching Voltage
600V AC
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Weight
0.6
Series
199 Power Series
Input Voltage
24V AC
Motor Rated
Yes
Coil Resistance
12 ohm
Power Consumption
4 W, 10 VA
Operating Current
2 A at 500V DC (Resistive Load), 20 A at 110V DC (Resistive Load), 4 A at 325V DC (Resistive Load), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 8 A at 220V DC (Resistive Load)
Response Time
30 msec
Minimum Operating Temperature
-67 Degrees F
Horsepower @ 120V AC
2 hp
Electrical Operating Durability
50,000
Sealing
Open
Maximum Operating Temperature
131 Degrees F
Base Type
Panel
Horsepower @ 240V AC
2 hp
Frequency
50/60 Hz
Minimum Switching Current
1,000 mA
Power consumption in W
4 W DC
Cover Type
Open cover
Power consumption in VA
10 VA AC
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Voltage Range
0.85...1.1 Un AC/DC
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Contacts Material
Silver alloy contacts
Product Type
Power relay
Product Certifications
UL Listed; CSA; CE
Contact Blow-out Type
Magnetic
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Wire Range
AWG 14
Contact Composition
2 C/O
Electrical Durability
50000 cycles resistive
Rated Operational Current
40 A at 300 V AC (on resistive load) conforming to UL; 40 A at 28 V DC (on resistive load) conforming to UL; 20 A at 110 V DC (on resistive load) conforming to UL; 8 A at 220 V DC (on resistive load) conforming to UL; 4 A at 325 V DC (on resistive load) conforming to UL; 2 A at 500 V DC (on resistive load) conforming to UL
Status Indicator
No Indicator
Type
Power, Open Style

Description

Open Power Relay, Base Shape Octal, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 8, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 40 A @ 300V, Contact Rating (DC) 2 A @ 500V, 20 A @ 120V, 4 A @ 325V, 40 A @ 8V, 8 A @ 240V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 3.13 in, Body Height 3.13 in, Body Width 2.5 in, Coil Resistance 12 ohm

Restrictions

Hazardous material
