  13. Surface, Open Power Relay, Square, 40 A, 6 Pins, Screw

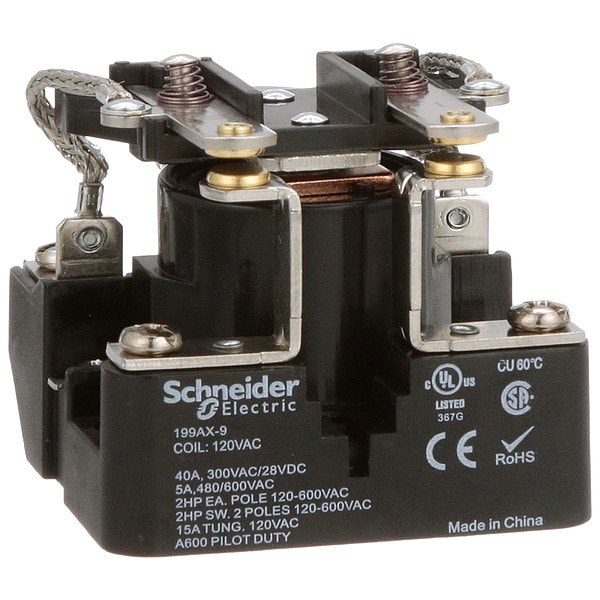

Schneider Electric Surface, Open Power Relay, Square, 40 A, 6 Pins, Screw 199AX-9 - main

CAD Viewer & Download Files

Surface, Open Power Relay, Square, 40 A, 6 Pins, Screw

  • Mfr # 199AX-9

  • Zoro # G1383575

CAD Available
product price: $47.55
/ea

Key Features

CAD Drawing
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
199AX-9
Zoro #
G1383575
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.25 in
Dimensions
2.25"H, 2.50"W, 2.43"D
Body Depth
3.12 in
Body Width
2.5 in
Overall Depth
1.95 in
Body Height
2.31 in

Details

Item
Open Power Relay
Mounting Style
Surface
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
120V AC
Current Rating
40 A
Contact Form
DPST-NO
Contact Rating (AC)
15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V
Contact Rating (DC)
40 A @ 28V
Coil Rating
10.0VA, 4.0W
Standards
CE Certified, CSA Certified, UL Listed
HP @ 120V
2
Contact Amp Rating (Resistive)
40A @ 300VAC/28VDC
Number of Poles
2
Hz
50/60
Hz - Electrical
50/60 Hz
Features
Riveted Construction
Power Consumption - Relay
10.0 VA
HP @ 240V
2
Contact Material
Silver Alloy
Minimum Operating Temperature
-67 Degrees F
Maximum Operating Temperature
131 Degrees F
Frequency
50/60 Hz
Power Consumption
4 W, 10 VA
Horsepower @ 120V AC
2 hp
Compatible with Manufacturer Model Number
50-1289-P
Electrical Operating Durability
50,000
Input Voltage
120V AC
Maximum Switching Voltage
600V AC
Coil Resistance
290 ohm
Weight
0.6
Horsepower @ 240V AC
2 hp
Minimum Switching Current
1,000 mA
Dielectric Strength
1,500V AC Between Open Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Response Time
30 msec
Motor Rated
Yes
Operating Current
15 A at 120V AC (Tungsten Filament), 40 A at 28V DC (Resistive Load), 40 A at 300V AC (Resistive Load), 5 A at 480V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Sealing
Open
Series
199 Power Series
CAD Available
Yes
Compatible Manufacturer Part Number
50-1289-P
Compatible Grainger Part Number
6CVA2
Compatible Manufacturer Model Number
50-1289-P
Status Indicator
No Indicator
Rated Operational Voltage
6...600 V AC 50-60 Hz; 6...250 V DC
Ambient Air Temperature for Operation
-67 to 131°F (-55 to 55°C)
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Contact Composition
2 NO
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Power consumption in VA
10 VA AC
Cover Type
Open cover
Wire Range
AWG 14
Product Certifications
UL Listed; CSA; CE
Terminal Tightening Torque
10.62 to 15.05 lbf.in (1.2 to 1.7 N.m)
Motor Power HP
2 hp 120...600 V AC 50/60 Hz
Power consumption in W
4 W DC
Voltage Range
0.85...1.1 Un AC/DC
Type
Power, Open Style

Description

Open Power Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPST-NO, Current Rating 40 A, Electrical Connection Screw Terminal, Number of Pins 6, Sealing Open, Status Indicator No Indicator, Contact Rating (AC) 15 A @ 120V, 40 A @ 300V, 5 A @ 480/600V, Contact Rating (DC) 40 A @ 28V, Horsepower @ 120V AC 2 hp, Horsepower @ 240V AC 2 hp, Mounting Style Surface, Body Depth 2.49 in, Body Height 2.49 in, Body Width 2.5 in, Coil Resistance 290 ohm
