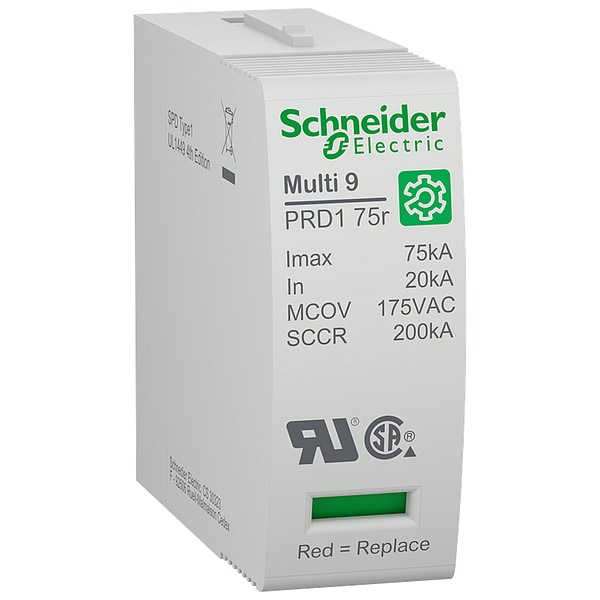

Schneider Electric Surge Arrester, 120V AC, 1 Poles M9LC175 - main

Surge Arrester, 120V AC, 1 Poles

  • Mfr # M9LC175

  • Zoro # G307458662

product price:  $51.25
/ea

Key Features

Voltage
120V AC
Number of Poles
1
Voltage Protection Rating
600V
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
M9LC175
Zoro #
G307458662
UPC #
3606481586087
Country of Origin
Spain

Dimensions

Length
1.77 in
Depth
2 11/16 in
Width
11/16 in

Details

Item
Surge Arrester
Voltage
120V AC
Number of Poles
1
Voltage Protection Rating
600V
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
Nominal Discharge Current
20 kA
Max. Continuing Operating Voltage
175V
Enclosure NEMA Rating
NEMA 1
Standards
UL 1449
For Use With
PRD175r Surge Protection Device
Relative Humidity
0-95 %
Operating Altitude
0...6561.68 ft (0...2000 m)
Color
Gray RAL 7035)
Quality Labels
CSA || UR
[Uc] Maximum Continuous Operating Voltage
175 V
Range
Multi9
Ambient Air Temperature For Operation
-25-60 °C
Surge Arrester Technology
MOV
Ambient Air Temperature For Storage
-40-85 °C
Maximum [Up] Voltage Protection Level
<600 V
9 Mm Pitches
2
Maximum Discharge Current
75 kA
Mounting Support
into SPD module
Mounting Mode
plug-in
Response Time
< 25 ns
Local Signalling
mechanical indicator green and red)
Surge Arrester Class Type
type 1

Description

Surge Arrester Cartridge, Max. Continuing Operating Voltage 120 V, Max. Surge Current per Phase 75 kA, Nominal Discharge Current 20 kA, Standards UL 1449, Depth 2 11/16 in, Length 1.77 in, Width 11/16 in, For Use With PRD175r Surge Protection Device
