Shop SCHNEIDER ELECTRIC

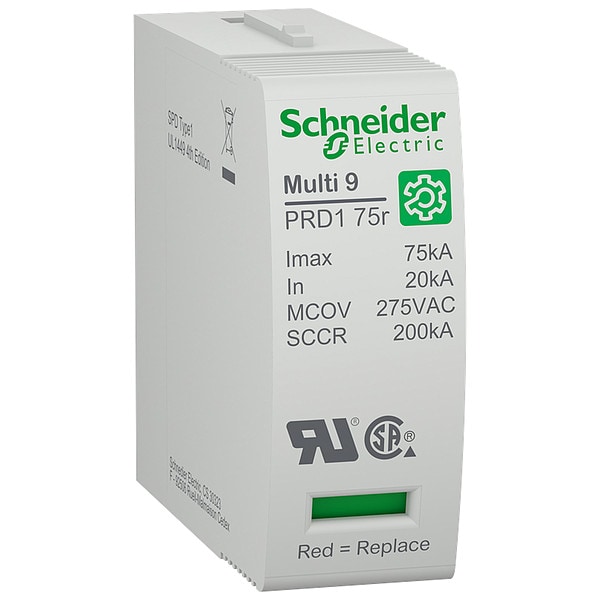

Surge Arrester, 240V AC, 1 Poles

  • Mfr # M9LC275
  • Zoro # G807458667
product price:
$
55.19
/ea

Key Features

Voltage
240V AC
Number of Poles
1
Voltage Protection Rating
<900 V
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M9LC275
Zoro #
G807458667
UPC #
3606481586094
Country of Origin
Spain

Dimensions

Length
1.77 in
Depth
2 11/16 in
Width
11/16 in

Details

Item
Surge Arrester
Voltage
240V AC
Number of Poles
1
Voltage Protection Rating
<900 V
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
Nominal Discharge Current
20 kA
Max. Continuing Operating Voltage
240 V
Enclosure NEMA Rating
NEMA 1
Standards
UL 1449
For Use With
PRD175r Surge Protection Device
Quality Labels
CSA || UR
Ambient Air Temperature For Operation
-25-60 °C
Range
Multi9
Maximum [Up] Voltage Protection Level
<900 V
Local Signalling
mechanical indicator green and red)
Ambient Air Temperature For Storage
-40-85 °C
Surge Arrester Class Type
type 1
Maximum Discharge Current
75 kA
9 Mm Pitches
2
Relative Humidity
0-95 %
Operating Altitude
0...6561.68 ft (0...2000 m)
Response Time
< 25 ns
Color
Gray RAL 7035)
Mounting Support
into SPD module
[Uc] Maximum Continuous Operating Voltage
275 V
Mounting Mode
plug-in
Surge Arrester Technology
MOV
Compatible Product Type
PRD175r Surge Protection Device

Description

Surge Arrester Cartridge, Max. Continuing Operating Voltage 240 V, Max. Surge Current per Phase 75 kA, Nominal Discharge Current 20 kA, Standards UL 1449, Depth 2 11/16 in, Length 1.77 in, Width 11/16 in, For Use With PRD175r Surge Protection Device
