  6. Surge Arrester, 3 Phase, 120/208V, 3 Poles, 4 Wires

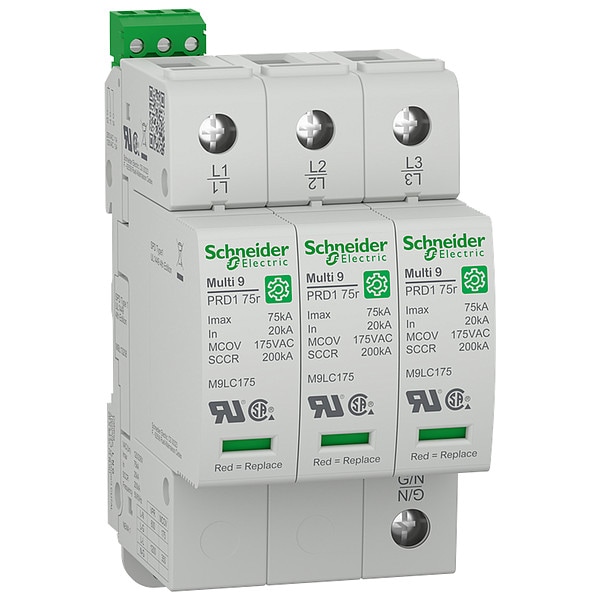

Schneider Electric Surge Arrester, 3 Phase, 120/208V, 3 Poles, 4 Wires M9L13208 - main

Surge Arrester, 3 Phase, 120/208V, 3 Poles, 4 Wires

  • Mfr # M9L13208

  • Zoro # G707458668

product price:  $234.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
3
Voltage
120/208V
Number of Poles
3
Voltage Protection Rating
1200V (L-L), 600V (L-N)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M9L13208
Zoro #
G707458668
UPC #
3606481585943
Country of Origin
Spain

Dimensions

Depth
2.81 in
Width
2.07 in
Wire Stripping Length
10 mm L/N || 10 mm PE || 6 mm dry contacts

Details

Item
Surge Arrester
Mounting Style
DIN Rail
Phase
3
Voltage
120/208V
Number of Poles
3
Voltage Protection Rating
1200V (L-L), 600V (L-N)
Number of Wires
4 Wires
Modes of Protection
L-N
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
Nominal Discharge Current
30 A
Short Circuit Current Rating
200kA
Modular
Yes
Enclosure NEMA Rating
NEMA 1
Enclosure Material
Non-Metallic
Wire Gauge
10 to 2 AWG (Rigid); 10 to 4 AWG (Flexible)
Basic Material
Nonmetallic
Color
Gray
Min. Operating Temp.
-13 Degrees F
Max. Operating Temp.
140 Degrees F
Standards
UL 1449
Includes Surge Counter
No
Signal Contacts Composition
1 SD (1 C/O)
Surge Arrester Class Type
type 1
Surge Arrester Technology
MOV
Mounting Support
DIN rail
Mounting Mode
clip-on
Device Short Name
PRD1 75r
Maximum [Up] Voltage Protection Level
<600 V L/N || <1200 V L/L
Surge Arrester Type
electrical distribution network
Operating Altitude
6561.68 ft (2000 m)
Range
Multi9
Maximum Discharge Current
75 kA
Local Signalling
green mechanical indicator operating || red mechanical indicator end of life
Relative Humidity
0-95 %
Remote Signalling
with
9 Mm Pitches
6
Pollution Degree
3
Ambient Air Temperature For Storage
-40-85 °C
Tightening Torque
3-3 N.m L/N || 3-3 N.m PE
Response Time
< 25 ns
Connections - Terminals
tunnel type terminal 6-35 mm² AWG 10...AWG 2) - rigid || tunnel type terminal 6-25 mm² AWG 10...AWG 4) - flexible || tunnel type terminal dry contacts) 0.5-1.5 mm²
[Uc] Maximum Continuous Operating Voltage
common mode 175 V AC L/N || differential mode 350 V AC L/L
Ambient Air Temperature For Operation
-25-60 °C
Disconnector Device Type
associated circuit breaker 30 A C 10 kA
Max. Continuing Operating Voltage
175 V AC

Description

Surge Arrester, Nonmetallic, Gray, Depth 2.81 in, Enclosure NEMA Rating 1
