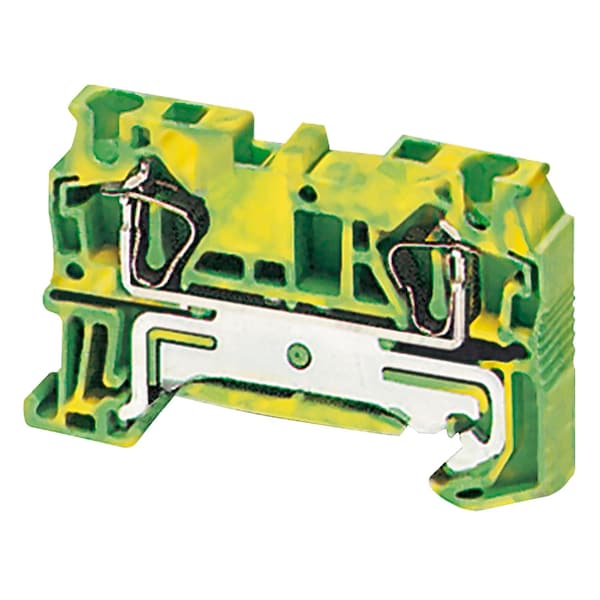

Terminal block, Linergy TR, spring type, protective earth, 2 points, 4sq mm, green-yellow, set of 50

  • Mfr # NSYTRR42PE

  • Zoro # G200906291

product price:
$
7.39
/ea
Sold in multiples of 50 for $369.50

Key Features

Terminal Block Type
Protective Earth
Mounting Type
Clip-On
Connection Type
Spring Clamp
Housing Color
Green, Yellow
Standards
cURus || LR || GL || IEC-Ex || DNV || EAC || CSA || ATEX || VDE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
NSYTRR42PE
Zoro #
G200906291
UPC #
-
Country of Origin
Germany

Dimensions

Overall Width
6.2 mm
Overall Length
56 mm
Wire Stripping Length
10 mm
Overall Depth
36.5 mm

Details

Item
Terminal Block
Terminal Block Type
Protective Earth
Mounting Type
Clip-On
Connection Type
Spring Clamp
Housing Color
Green, Yellow
Standards
cURus || LR || GL || IEC-Ex || DNV || EAC || CSA || ATEX || VDE
Material
polyamide 6/6 insulating case
Product Name
Linergy TR
Number Of Terminals
2
Terminal Block Level
1
Product Compatibility
Spacial enclosures
Creep Resistance
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Connection Position
top
Flame Retardance
V0 0.8 mm UL 94
Dielectric Loss
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Range Compatibility
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Ambient Air Temperature For Operation
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
Dielectric Constant
3.7 at 1 MHz
Dielectric Strength
1000 V IEC 60243-1
Resistivity
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Number Of Measurement Input
2
Nominal Cross Section
4 mm²
Surface Resistance
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Device Short Name
TRR
Tool Type
connection flat screwdriver || disconnection flat screwdriver
Range
Linergy
Cable Cross Section
0.08-4 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end

Description

SPRING TERMINAL,PROTECTIVE EARTH,2 POI
